Heavy Duty Ackerman Trailer

From £1273.69 - To £2073.00
(From £1,528.43 - To £2,487.60 including VAT)

Clear
SKU: N/A Category:

Description

Heavy Duty Ackerman Trailer

DESIGNED TO BE TOWED BY TRACTOR, TUG OR FORKLIFT TRUCK. WE CAN MAKE MANUAL PULLED VERSIONS TO ORDER.

Trailers with Double Ackerman Steering have all four wheels on individual axles, linked together under the deck for simultaneous steering.

  • Maximum towing speed 8kph (5mph)
  • Fully welded steel chassis

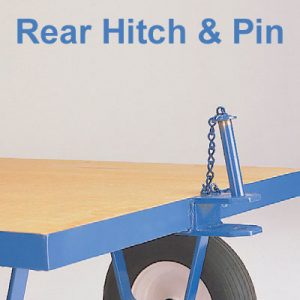

  • 35mm tow eye - rear hitch & pin
  • Flush ply decks - sanded and coated
Technical Specifications
Capacity Deck Size L x W Deck Height Wheel Dia. Wheel Type Weight Model Ref
1000kg
2000 x 1000mm 500mm 400mm Solid rubber 200kg TR700
1000kg
2000 x 1000mm 500mm 400mm Pneumatic 185kg TR700P
1000kg
2500 x 1250mm 500mm 400mm Solid rubber 230kg TR730
1000kg
2500 x 1250mm 500mm 400mm Pneumatic 215kg TR730P
2000kg
2000 x 1000mm 515mm 400mm Solid rubber 220kg TR710
2000kg
2000 x 1000mm 550mm 500mm Pneumatic 205kg TR710P
2000kg
2500 x 1250mm 515mm 400mm Solid rubber 250kg TR740
2000kg
2500 x 1250mm 550mm 500mm Pneumatic 235kg TR740P
3000kg
2000 x 1000mm  575mm 455mm
Solid rubber   250kg TR720
3000kg
2000 x 1000mm  720mm 610mm
 Pneumatic  235kg  TR720P
3000kg
2500 x 1250mm  575mm  455mm Solid rubber   285kg  TR750
3000kg
2500 x 1250mm  720mm  610mm Pneumatic   270kg  TR750P
trailer-rear-hitch-and-pin

These trailers are manufactured to order, please allow 25 - 30 working days for delivery.

Additional information

Model

TR700, TR700P, TR730, TR730P, TR710, TR710P, TR740, TR740P, TR720, TR720P, TR750, TR750P
