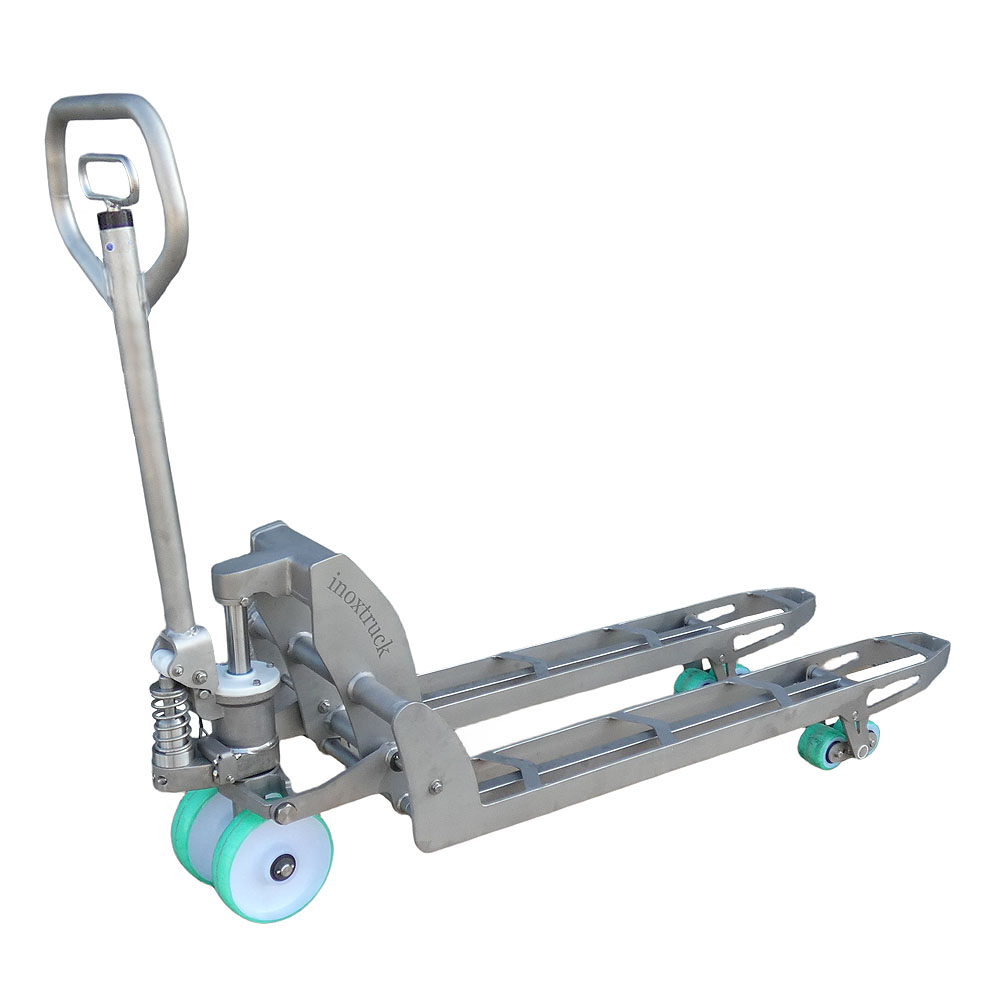

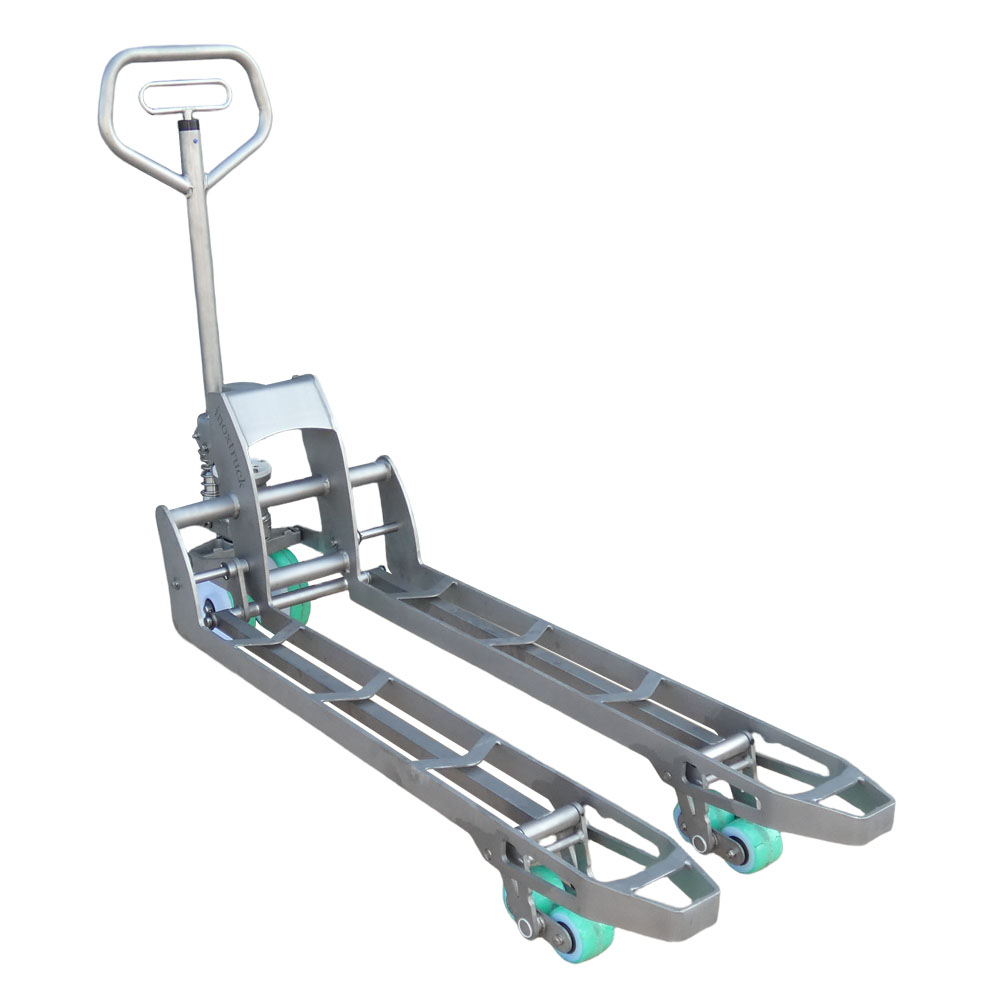

1.5T Stainless Steel Pallet Truck
The Inoxtruck Stainless Steel pallet truck is designed for use in the food, agricultural and pharmaceutical industries. It is suitable for handling dairy, seafood and meat products.
This stainless steel pallet truck is ideal for damp and harsh environments where strict hygiene compliance is required.
- High resistance to corrosion
- Manufactured 100% in stainless steel AISI 304L including all hydraulic equipment
- The easy access to all pallet truck parts allows for complete cleaning
- Easy access to all pallet truck parts also prevents hiding places for bacteria

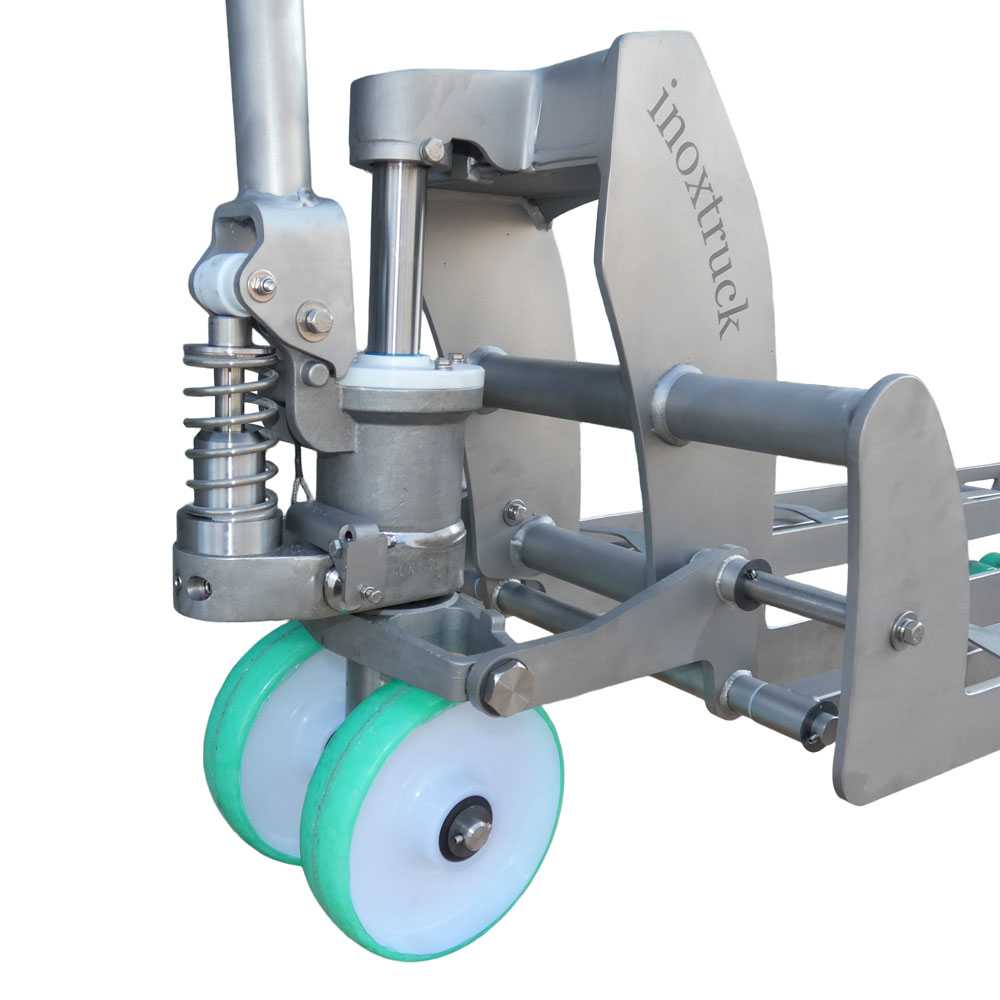

- Ergonomic handle design for easy handling

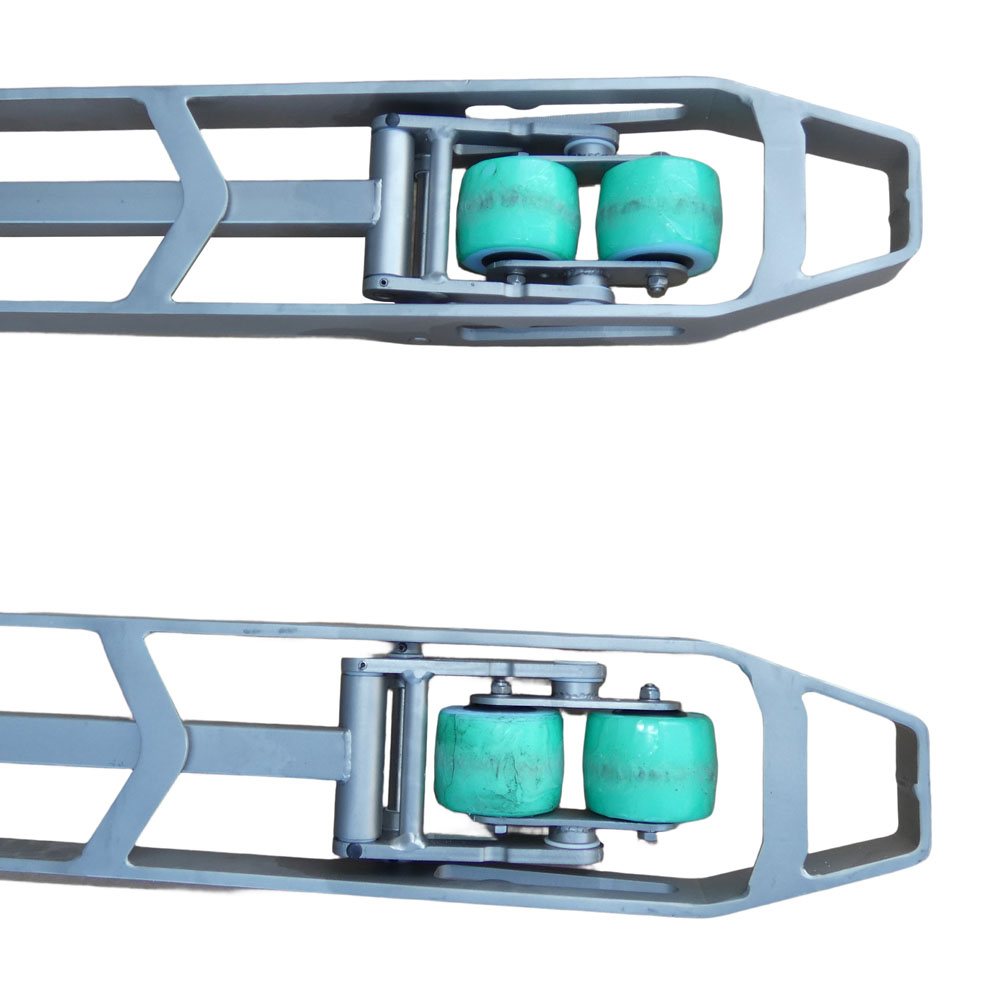

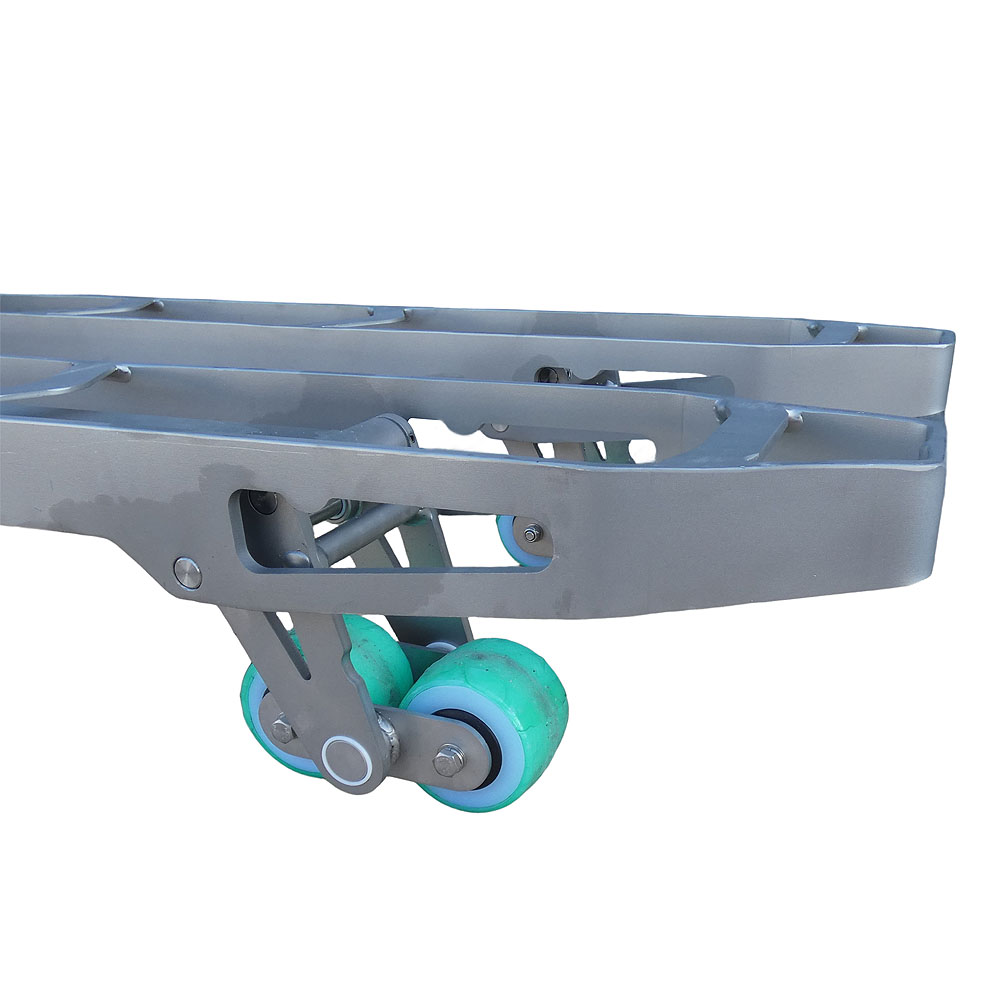

- All bearings are sealed, waterproof and self-lubricated
- Minimum maintenance

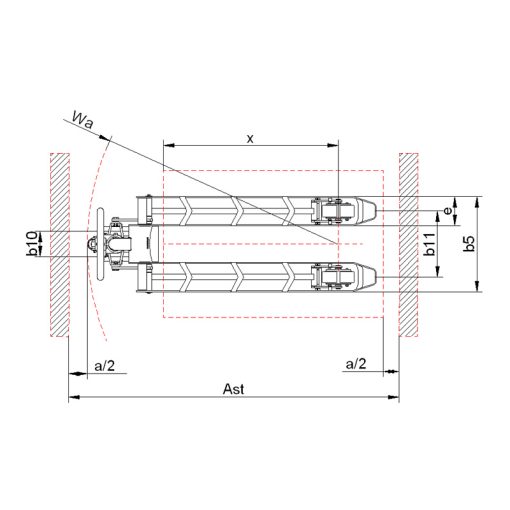

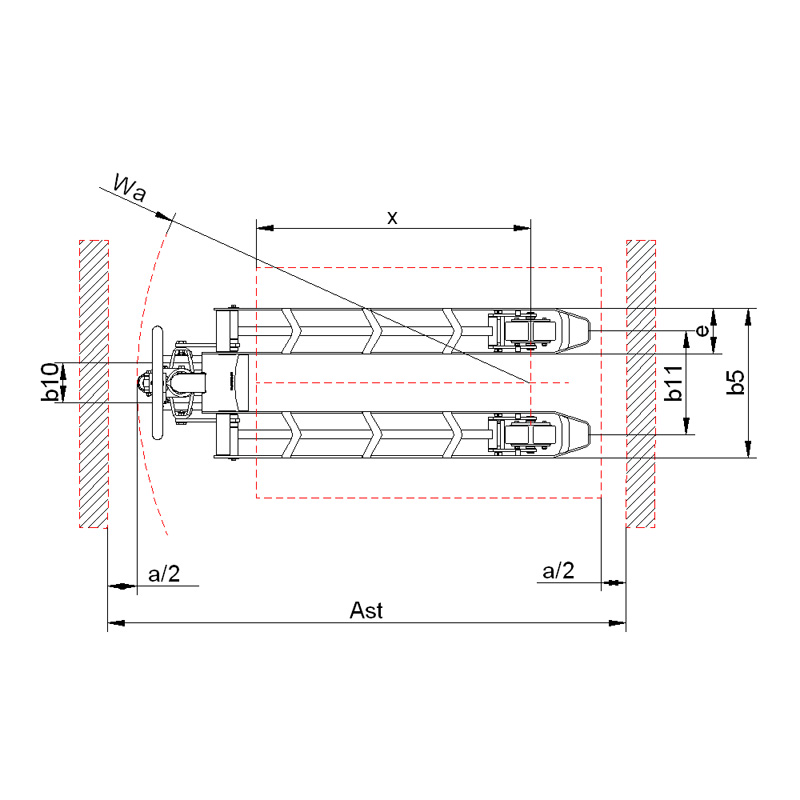

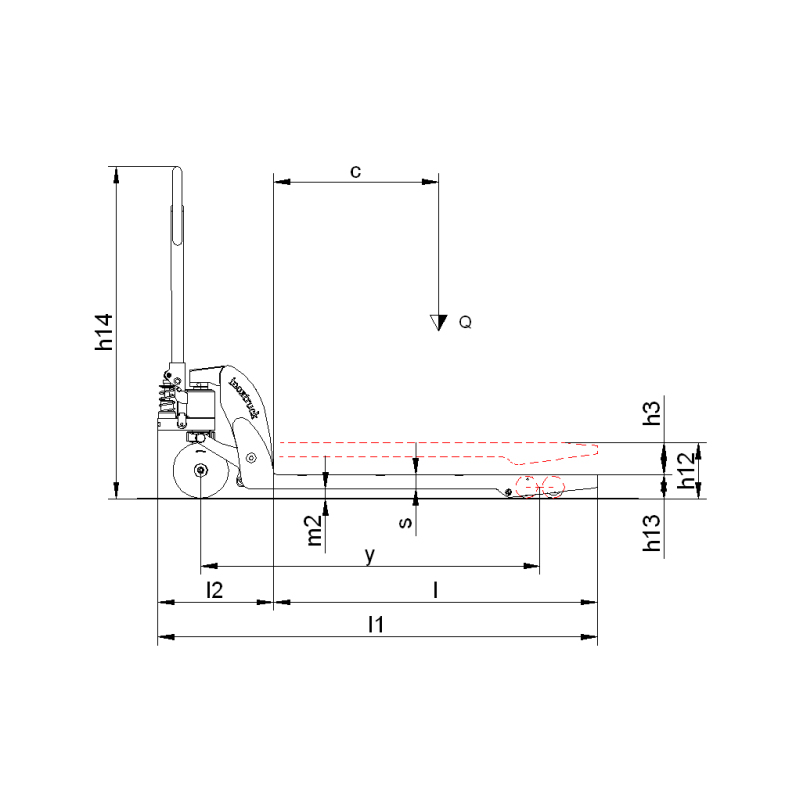

| Technical Specifications: | |||
| 1.4 | Operator type: manual, pedestrian, operator standing, seated | Manual | |
| 1.5 | Load capacity | Q kg | 1500 |
| 1.6 | Load center distance | C mm | 600 |
| 1.8 | Load wheel axle fork face (forks lowered) | X mm | 955 |
| 1.9 | Wheelbase | Y m | 1220 |
| 1.10 | Chassis | AISI 304L | |
| 1.11 | Sheet | AISI 304L | |
| Weight | |||
| 2.1 | Truck weight with nominal load | kg | 1570 |
| 2.2 | Axle loadings with nominal load | kg | 502/1070 |
| 2.3 | Axle loadings without load | kg | 49/23 |
| Wheels and Drive Train | |||
| 3.1 | Tyres: PT=Polyurethane, PA=Polyamide (nylon), Vul=Vulkollan, drive/load side | PA/PA | |
| 3.2 | Tyre dimensions, drive side | 200 X 50 | |
| 3.3 | Tyre dimensions, load side | 80 X 67 | |
| 3.5 | Number of wheels, drive/load side (x=driven) | 2/2 | |
| 3.6 | Track width (center of tyres), drive side | b10 mm | 138 |
| 3.7 | Track width (center of tyres), load side | b11 mm | 360/388 |
| Dimensions | |||
| 4.4 | Lift height | h3 mm | 120 |
| 4.9 | Height of tiller arm (minimum/maximum) | h14 mm | 1200 |
| 4.15 | Fork height, fully lowered | h13 mm | 90 |
| 4.19 | Overall length | I1 mm | 1580 |
| 4.20 | Length to fork face (includes fork thickness) | I2 mm | 420 |
| 4.22 | Fork dimensions (thickness, width, length) | s/e/l mm | 55/160/1145 |
| 4.25 | Outside width over forks (minimum/maximum) | b5 mm | 520 |
| 4.32 | Ground clearance at center of wheelbase (forks lowered) | m2 mm | 35 |
| 4.34a | Working aisle width (Ast) with 800 x 1200mm pallets, load lengthwise | Ast mm | 2090 |
| 4.35 | Turning circle radius | Wa mm | 1420 |
