1t ATEX SS High Lift Pallet Truck – 1004-RF-PLUS-EX


SKU: 1004-RF-PLUS-EX Category:

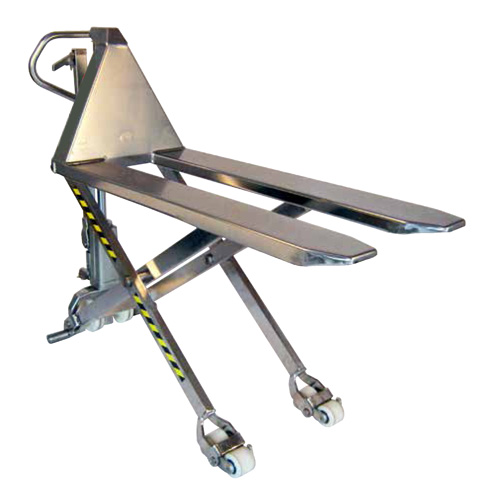

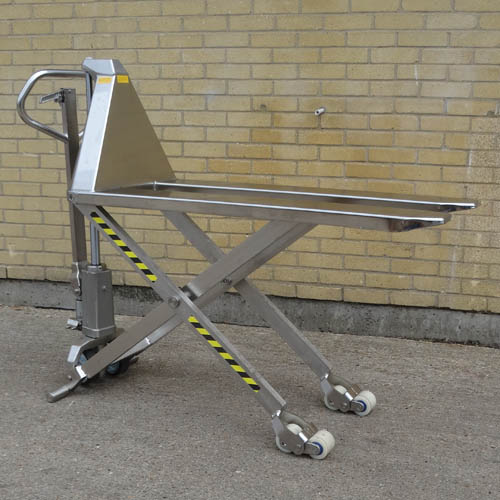

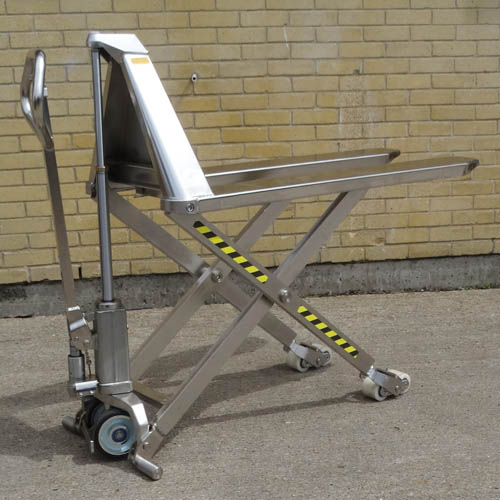

1t ATEX SS High Lift Pallet Truck

Designed for use in areas in which an explosive atmosphere is generated occasionally due to different gases or dust

The high lift pallet truck (also sometimes referred to as a 'Hi-lifter truck' or 'Scissor Lift Pallet Truck') is designed to eliminate repetitive back strain when loading or offloading pallets by hand. The high lift pallet truck has a scissor action to lift pallets to a working height of 800mm. Our scissor lift pallet trucks conform to the latest applicable health and safety regulations and can help to reduce the chances of a back strain or injury.

This ATEX explosion proof high lift pallet truck is designed for corrosive, damp or harsh environments or applications where a high standard of hygiene is required such as meat or fish processing plants, dairies, pharmaceutical and chemical industries.

  • ATEX Rating: Ex II 2G Ex h IIB T6 Gb
  • Equipment Group II category
  • Suitable for Zone 1 & Zone 2 (gas), also suitable for Zone 21 & Zone 22 (dust)
  • These trucks are manufactured in conformance with the ATEX directive No. 2014/34/EC and the standards EN 80079-36 and EN 80079-37
  • Automatically braked when raised above 400mm
  • Three position control lever
  • Automatic descending speed control
  • Quick lift as standard on manual models
Technical Specifications:
Capacity: 1000kg
Length of Forks: 1200 mm
Width over Forks: 540 mm
Lowered Fork Height: 85 mm
Max. Lift Height: 800 mm

This product is manufactured to order. Please expect 8-10 working weeks delivery time. If your order is urgent, please contact us.
