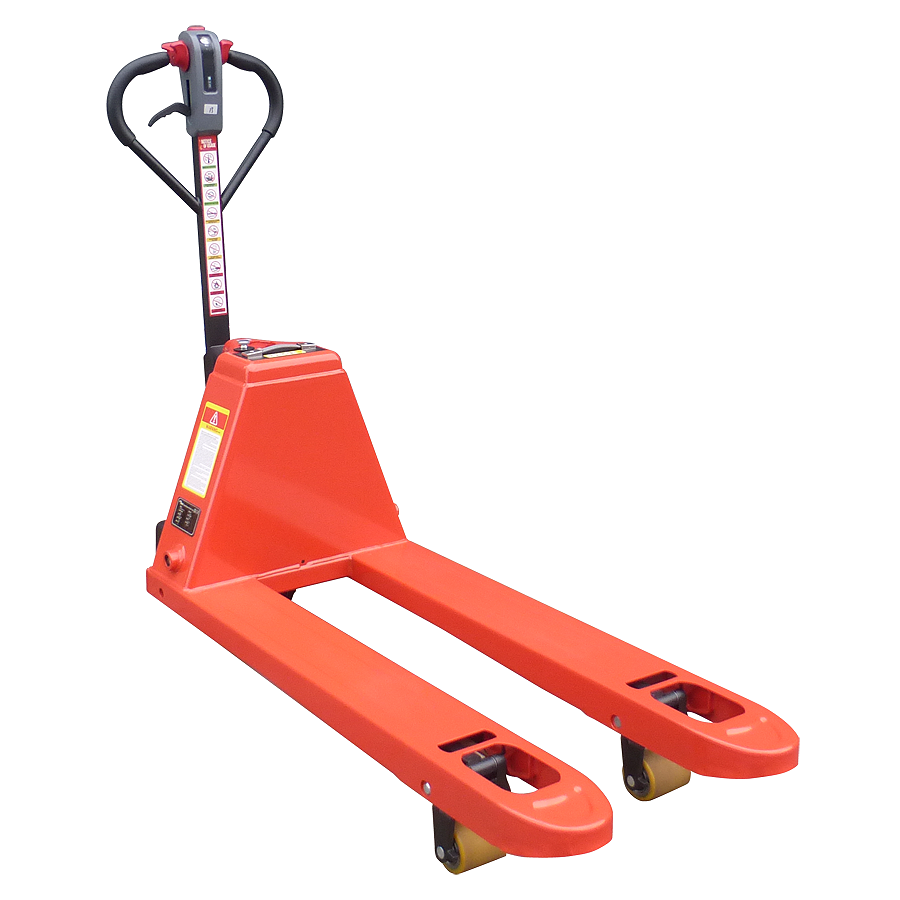

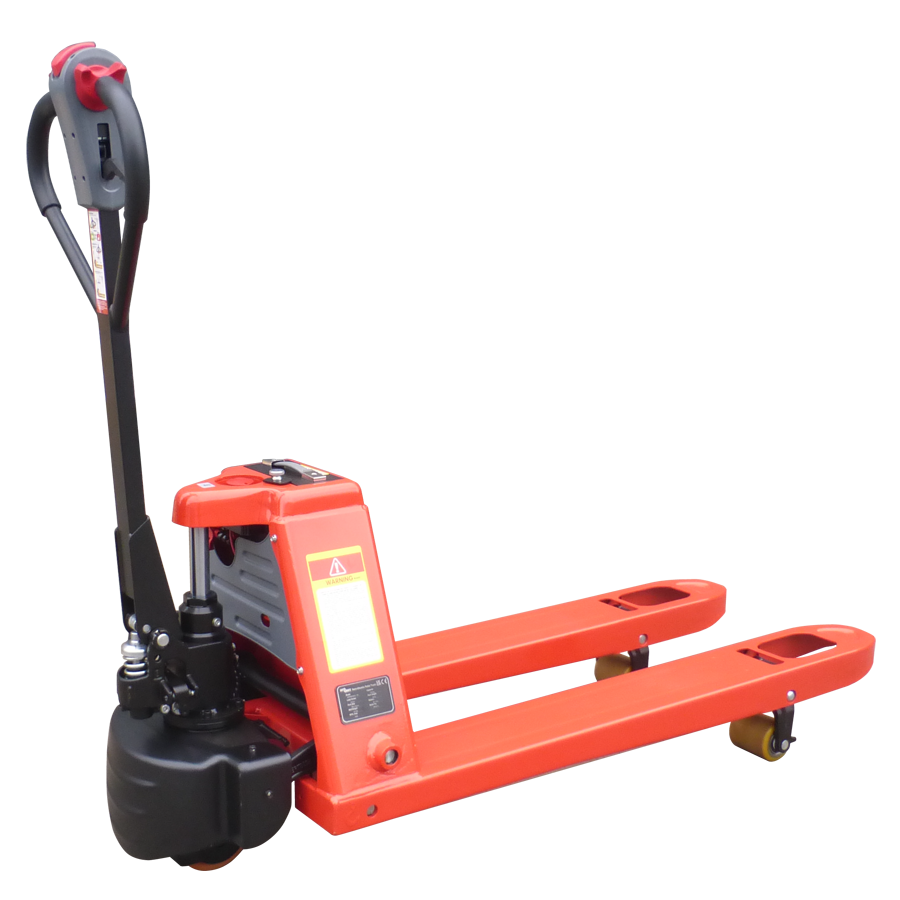

2T Semi-Electric Pallet Trucks – LEMP20S

Features:

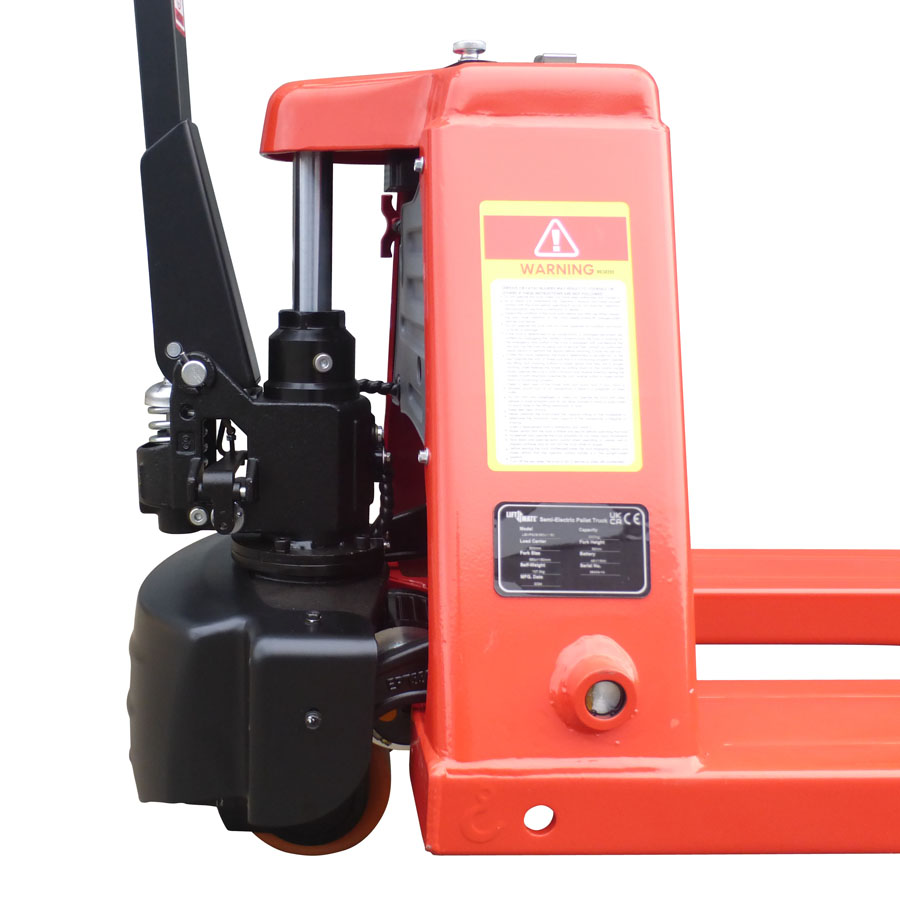

Powered drive, manual hydraulic lift
Easy to operate, strong yet very compact semi-powered pallet truck

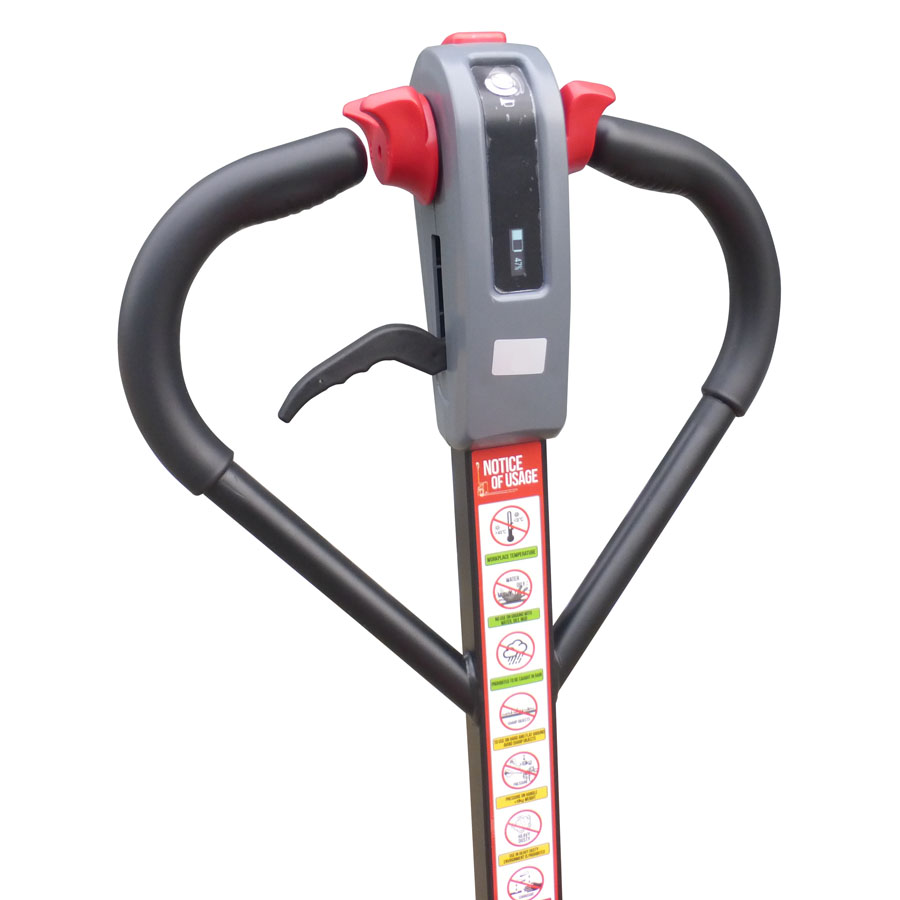

Ergonomically designed handle with LED battery indicator
Reversing button and accelerator controls on handle
Forks designed for easy pallet entry

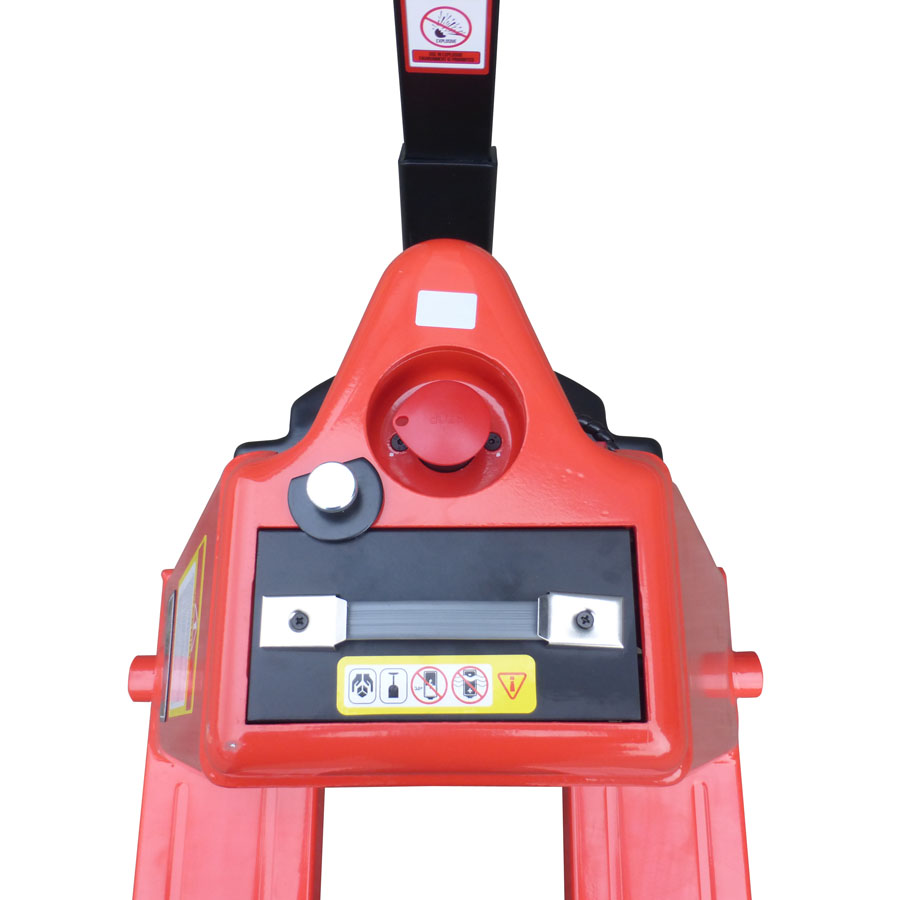

Portable and easily removable lithium battery
Quick charging – our semi-electric pallet truck can be charged between 2 and 5 hours
This semi-electric pump truck requires minimum maintenance
Optional handle rain cover available – see image above
240V charger – standard, included. Optional 110V charger available

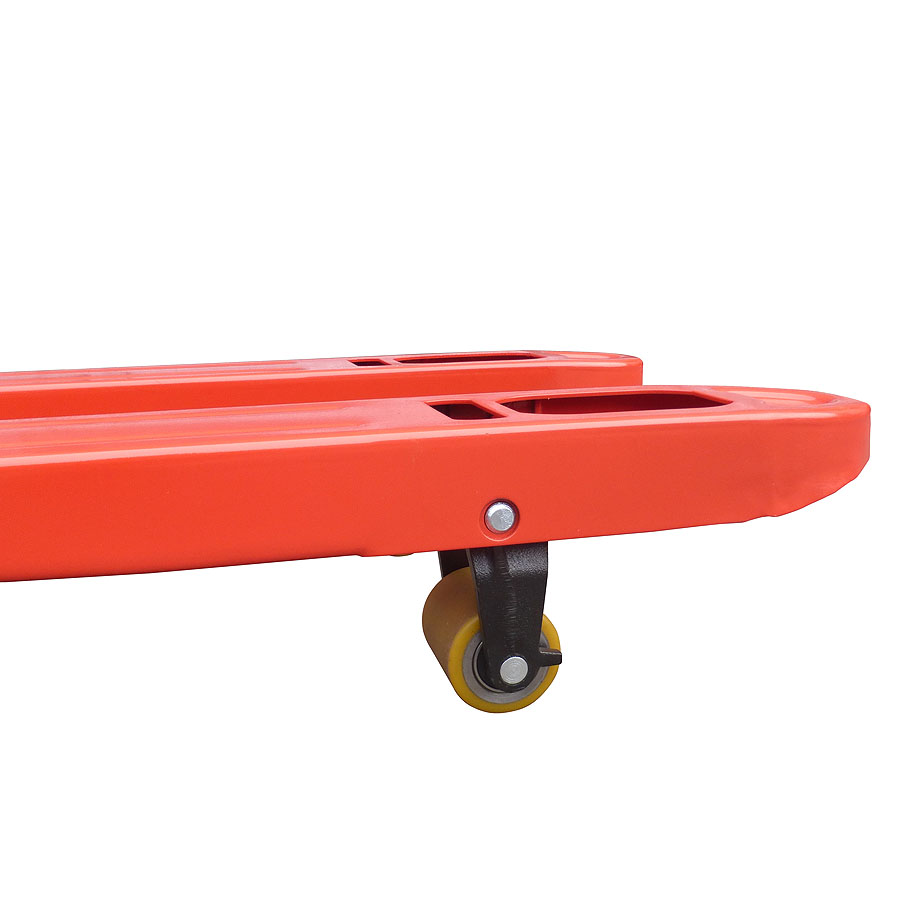

Supplied with Single Polyurethane Load Rollers as standard

THESE TRUCKS ARE SUPPLIED WITH
SINGLE LOAD ROLLERS AS STANDARD.
TANDEM LOAD ROLLERS ARE OPTIONAL.
IMAGES ABOVE ARE FOR DEMO. ONLY

**Technical Specifications:**
Model	LEMP20S	550x1000mm	550x1150mm	680x1000mm
Capacity	kg	2000	2000	2000
Load Centre	mm	600	600	600
Overall Fork Width	mm	550	550	680
Fork Length	mm	1000	1150	1000
Overall Length	mm	1402	1552	1402
Lowered Fork Height	mm	82	82	82
Max. Height of Forks	mm	197	197	197
Overall Height (with Tiller)	mm	1276	1276	1276
Rear Body Width	mm	550	550	680
Minimum Turning Radius	mm	1205	1353	1205
Maximum Travel Speed (Laden)	km/h	4	4	4
Maximum Travel Speed (Unladen)	km/h	5	5	5
Gradeability (Laden)	%	6	6	6
Gradeability (Unladen)	%	20	20	20
Traveling	kw	DC 1.0 Brushless	DC 1.0 Brushless	DC 1.0 Brushless
Lifting	kw	Hydraulic	Hydraulic	Hydraulic
Battery Voltage	V	48	48	48
Battery Capacity	Ah	15	15	15
Battery Type	–	Lithium	Lithium	Lithium
Travel Brake	–	Regenerate	Regenerate	Regenerate
Brake	–	Electromagnetic	Electromagnetic	Electromagnetic

Model	LEMP20S-550×1000, LEMP20S-550×1150, LEMP20S-680×1000
