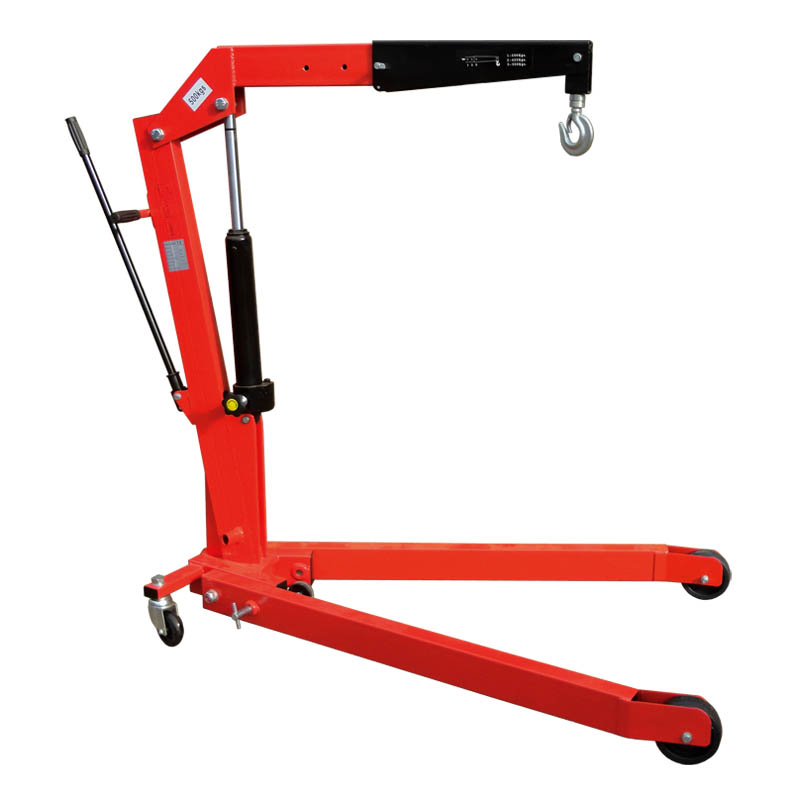

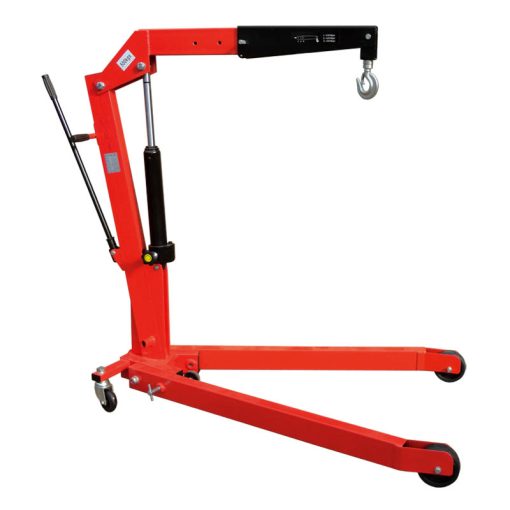

500kg Folding Workshop Crane

£595.00£714.00

SKU: SC500A Category:

Description

500kg Folding Workshop Crane



Technical Specifications:
Capacity: 500kg
Max. Lift Height: 2120 mm
Overall Depth: 1510 mm
Overall Width: 970 mm
Overall Height: 1410 mm
Approx. Weight: 75kg
  • Unique quick lifting by dual action pump
  • 3 positions adjustable jib extension
  • Chrome plated lifting piston and pump piston
  • Relief valve to prevent overload
  • Forged heavy duty swivel hook
  • 125% overload tested before delivery
  • Conforms to CE safety standard

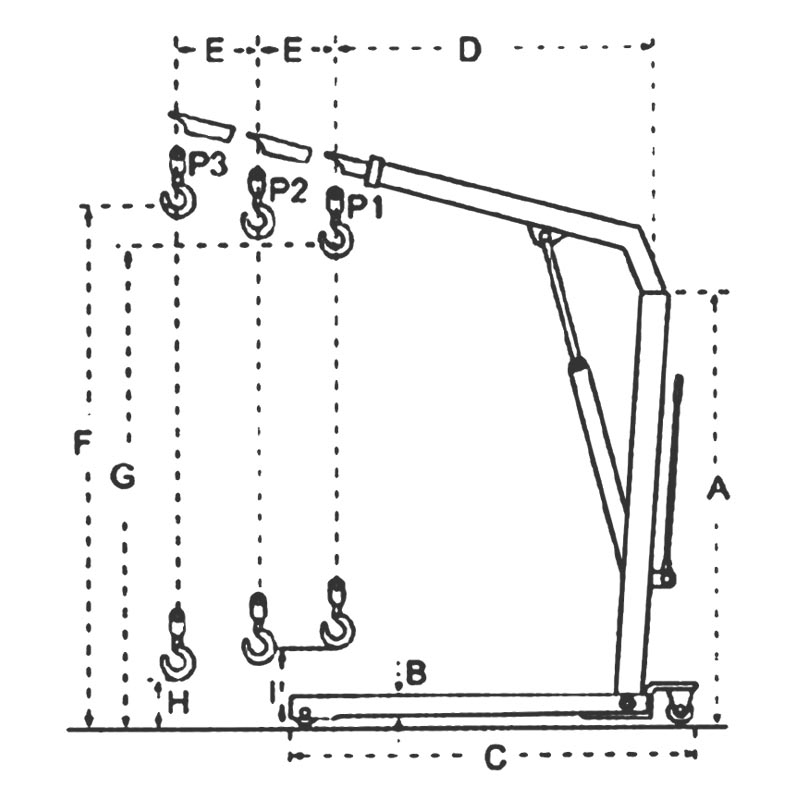

CAPACITY AT POSITION
(kg)
DIMENSIONS
(mm)
P1 P2 P3 A B C D E F G H I
500 425 350 1410 165 1510 895 102 2120 1960 150 340
