Description

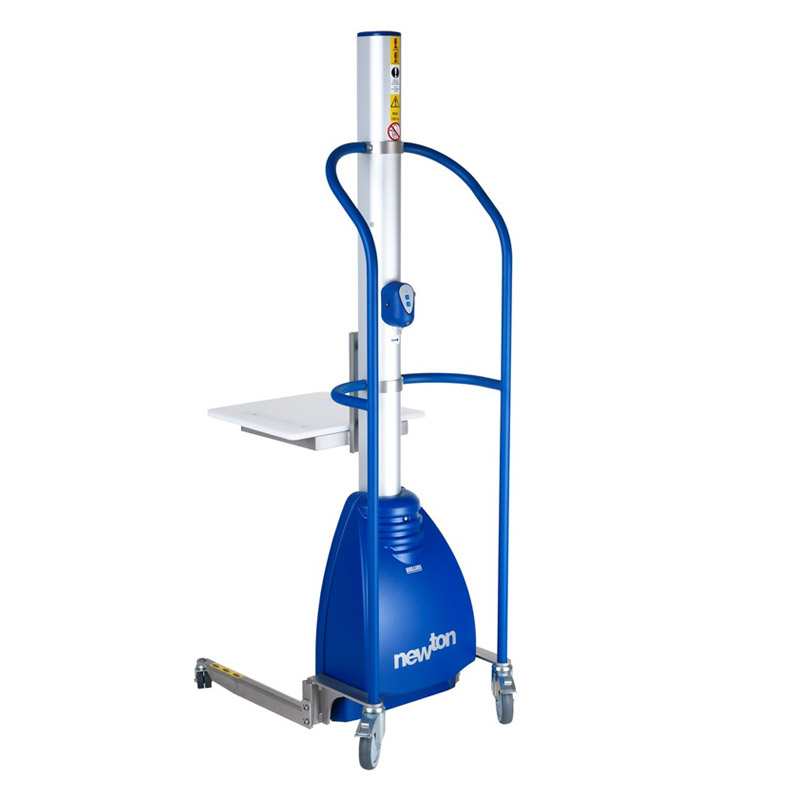

Newton Lifter 150
- Robust lifter
- Suitable for lifting loads in tight spaces
- On/Off switch
- Battery indicator
- Separate battery charger
- Supplied with platform as standard
| Model | LiN150-1535 | LiN150-1735 | LiN150-2035 |
| Capacity | 150 kg | 150 kg | 150 kg |
| Max. Lift Height | 1535 mm | 1735 mm | 2035 mm |
| Min. Lift Height | 140 mm | 140 mm | 140 mm |
| Dimensions (L x W x H) | 875 x 525 x 1870 mm | 875 x 525 x 2070 mm | 875 x 525 x 2370 mm |
| Platform Size | 485 x 460 mm | 485 x 460 mm | 485 x 460 mm |
| Lifting Speed | 80 mm / sec | 80 mm / sec | 80 mm / sec |
| Batteries | 2 x 7.5 Ah, 12V | 2 x 7.5 Ah, 12V | 2 x 7.5 Ah, 12V |
| Charging Voltage | 100-240 V | 100-240 V | 100-240 V |
| Charger | 24 V, 1 A | 24 V, 1 A | 24 V, 1 A |
| Safety Class | IP 41 | IP 41 | IP 41 |
| Wheels Diameter | ø 75 / 100 mm | ø 75 / 100 mm | ø 75 / 100 mm |
| Material | Rfr, Alu, ABS | Rfr, Alu, ABS | Rfr, Alu, ABS |
