Reglift Electric Lifter 125kg Capacity
- The Reglift R.125 lifter is a compact, robust and modular design stacker with a 125kg maximum load capacity
- Customizable with a wide range of tools allowing you to handle loads such as reels, drums, coils, bins, pallets, rolls etc.
- The lifter’s tool holder accommodates mechanical and electric tools with a quick change system
- The Reglift R.125 lifter is suitable for use in industrial production, service, automotive, logistics and other sectors
- The R.125 has a capacity of 125kg including the tool weight, at a distance of 400mm from the mast
- It has overload protection, a safety clutch and soft start for easy handling
- Designed with an ergonomic handle for multiposition grip
- The Remote control is integrated into the handle for optimal grip
- Great manoeuvrability thanks to its ABS wheels mounted on ball bearings
- 3 position braking system
- Choice of 3 maximum lift heights (1220, 1600 or 2050 mm)

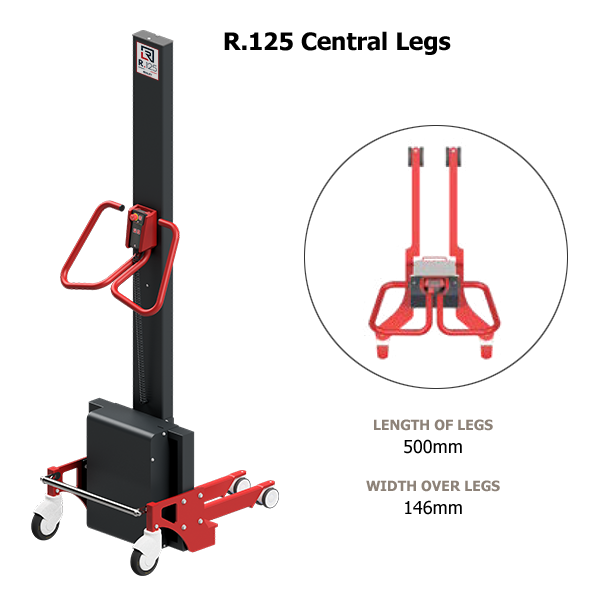

- REG-125-2120 & REG-125-3120 available with optional Central legs – Contact us for more information
- IP 44 steel finishing
| Reference: | REG-125-2120 | REG-125-3120 | REG-125-4120 |
| Max. Capacity: | 125 kg | 125 kg | 110 kg |
| Max. Lift Height: | 1220 mm | 1600 mm | 2050 mm |
| Total Height: | 1560 mm | 1940 mm | 2390 mm |
| Type of Legs: | Standard | ||
| Length of Legs: | 500 mm | ||
| Width over Legs: | 530 mm | ||
| Material: | Steel | ||
| Belt Operating Capacity: | 417 kg | ||
| Belt Breaking Load: | 1615 kg | ||
| Command Type: | Remote Control | ||
| Battery Type: | 2 AGM (Tot: 24 V – 9 Ah) | ||
| Total Battery Weight: | 4.85 kg | ||
| Charger: | External – 230 V – 50-60Hz | ||
| Number of Cycles: | 80-150 cycles | ||
| Battery Indicator: | On the remote control unit | ||
| Recharge Time: | 7.50h for 100% | ||
| Motor Speed: | 120 mm/s | ||
| Front Wheels: | Double Ø 75 – swivel | ||
| Rear Wheels: | Ø 125 – with central brake | ||
| Weight: | 58 kg | 60 kg | 63 kg |
