| Features |
1.1 |
Supplier |
|
LiftMate |
| 1.2 |
Model |
|
S16-120 |
| 1.3 |
Drive |
|
Electric |
| 1.4 |
Operator type: pedestrian, stand-on |
|
Pedestrian |
| 1.5 |
Rated load capacity |
Q (t) |
1.400 |
| 1.6 |
Load centre |
c (mm) |
600 |
| 1.8 |
Distance between the centre of the front axle and the back of the forks |
x (mm) |
945 |
| 1.9 |
Wheelbase |
y (mm) |
1.365 |
| Weights |
2.1 |
Load centre |
kg |
384 |
| 2.2 |
Distance between the centre of the front axle and the back of the forks |
Kg |
--- |
| 2.3 |
Wheelbase |
kg |
--- |
| Wheels and rollers |
3.1 |
Tyres, drive end / Load end (PU=Polyurethane) |
|
PU/PU |
| 3.2 |
Wheel size, drive end |
mm |
230x75 |
| 3.3 |
Wheel size, load end |
mm |
82x90 |
| 3.4 |
Support castors (dimensions) |
mm |
100x40 |
| 3.5 |
Number of wheels drive end/load end (x=powered) |
|
X1/2/2 |
| 3.6 |
Track width, drive end |
b10 (mm) |
506 |
| 3.7 |
Track width, load end |
b11 (mm) |
390 |

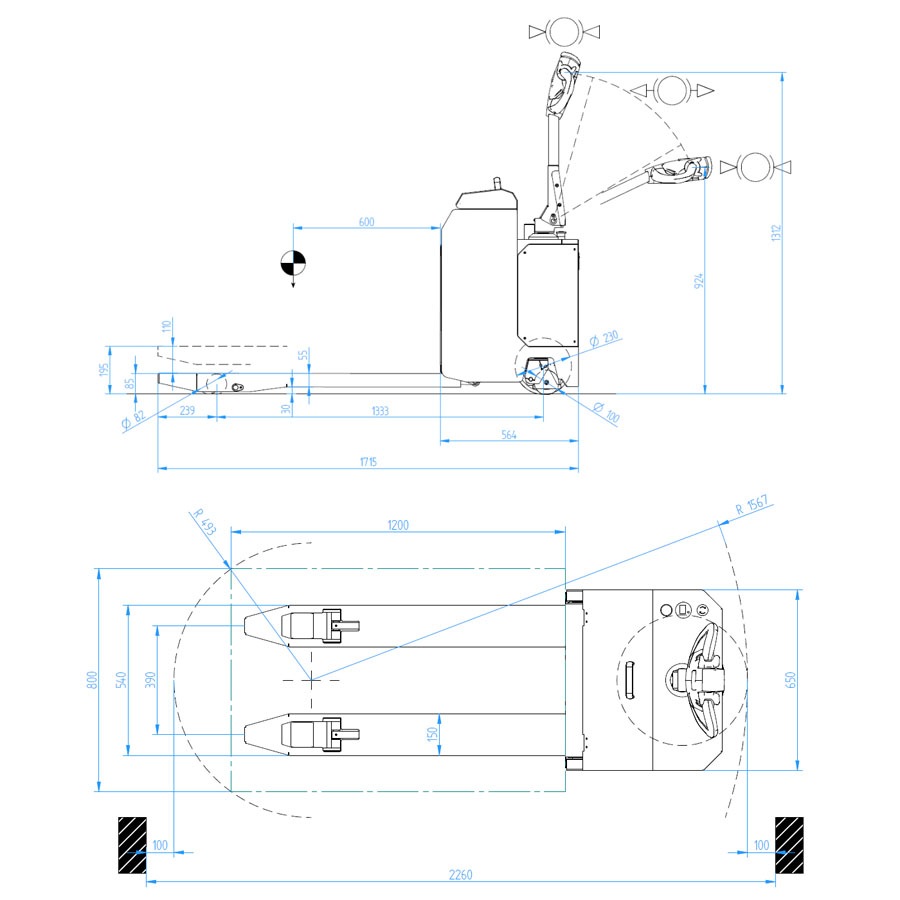

| Basic dimensions |
4.4 |
Stroke |
h3 (mm) |
110 |
| 4.9 |
Height of tiller in driving position, min/max |
h14 (mm) |
1.020/1.290 |
| 4.15 |
Ground clearence, lowered forks |
h13 (mm) |
85 |
| 4.19 |
Overall length |
l1 (mm) |
1.715 |
| 4.20 |
Length incl. Fork backs |
l2 (mm) |
564 |
| 4.21 |
Overall width |
b1 (mm) |
650 |
| 4.22 |
Fork dimensions |
s/e/l (mm) |
55/150/1.150 |
| 4.25 |
Overall fork width |
b5 (mm) |
540 |
| 4.32 |
Ground clearance, centre of the wheelbase |
m2 (mm) |
30 |
| 4.34 |
Working aisle width with 800x1,200 pallet lengthways |
Ast (mm) |
1.985 |
| 4.35 |
Turning radius |
Wa (mm) |
1.529 |
| Performance |
5.1 |
Travel speed (laden/unladen) |
km/h |
4,5/4,5 |
| 5.2 |
Fork speed (laden/unladen) |
m/s |
0,06/0,08 |
| 5.3 |
Lowering speed (laden/unladen) |
m/s |
0,11/0,03 |
| 5.8 |
Gradeability (laden/unladen) |
% |
10/18 |
| 5.10 |
Service brake |
|
Electromagnetic |
| Power |
6.1 |
Drive motor, rating at S2=60 min |
kW |
1,2 |
| 6.2 |
Pump motor, rating at S3=10% |
kW |
0,8 |
| 6.4 |
Battery voltage, rated capacity K5 |
V/Ah |
24/120 |
| 6.5 |
Battery weight |
kg |
95 |
|
8.1 |
Electric Drive Control |
|
AC |
| 8.4 |
Sound level at driver’s ear (ref. EN 12053) |
dB(A) |
<70dB |
