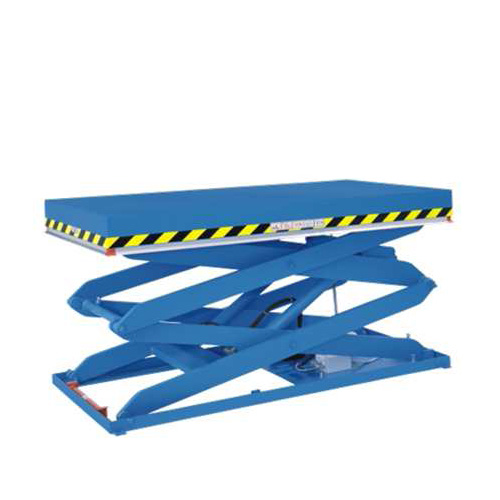

5000kg Double Static Scissor Lift Table
LiftMate double static lift tables ELD are ideal for use where greater lifting heights and compact dimensions are required. The constructional modification results from its application. They are standard-equipped with the same fittings as the ELS.
| CAPACITY | PLATFORM L x W (mm) |
SUB-FRAME L x W (mm) |
CLOSED HEIGHT |
RAISED HEIGHT |
LIFTING TIME APPROX. SEC |
POWER (KW) |
APPROX WEIGHT |
MODEL |
| 5000 kg | 1400 x 800 | 1250 x 750 | 550 mm | 2150 mm | 40 | 5.5* | 1200 kg | ELD 5-16-3 |
| 5000 kg | 1700 x 800 | 1500 x 750 | 600 mm | 2400 mm | 45 | 5.5* | 1300 kg | ELD 5-18-7 |
| 5000 kg | 2000 x 1000 | 1500 x 750 | 600 mm | 2400 mm | 45 | 5.5* | 1400 kg | ELD 5-18-9 |
* External hydraulic drive unit 2m from Lifting Table.
Features:
- Operating voltage 400 V
- Control voltage 230 V
- Dead man’s control unit with manual push button control
- Compact hydraulic unit (10% power-on time)
- Tabletop made of smooth sheet metal
- Sub-frame made of angle section with securing brackets (not self-supporting)
- Platform as a fixed part of the upper frame
- Differential cylinder
- Running rollers, fixed-bearing, scissor and cylinder bolts easy to exchange
- Safety rail
- Maintenance-free roller bearing
Lead time for these tables is usually 6-8 working weeks, if your order is time-sensitive, please contact us.
| Model | ELD 5-16-3, ELD 5-18-7, ELD 5-18-9 |
|---|
