Fully Powered Stackers (LES-10)

From £4495 - To £4995
(From £5,394.00 - To £5,994.00 including VAT)

SKU: N/A Category:


Fully Powered Stackers

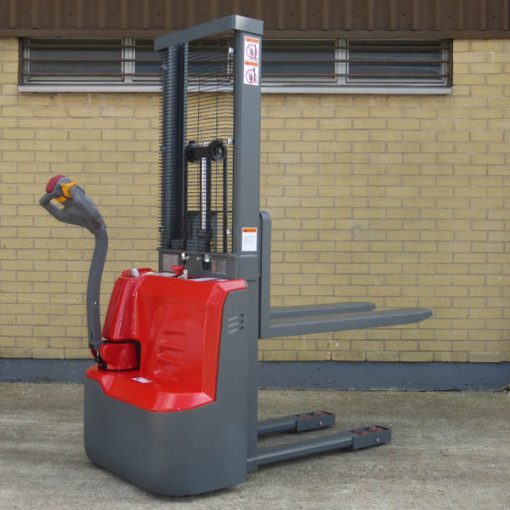

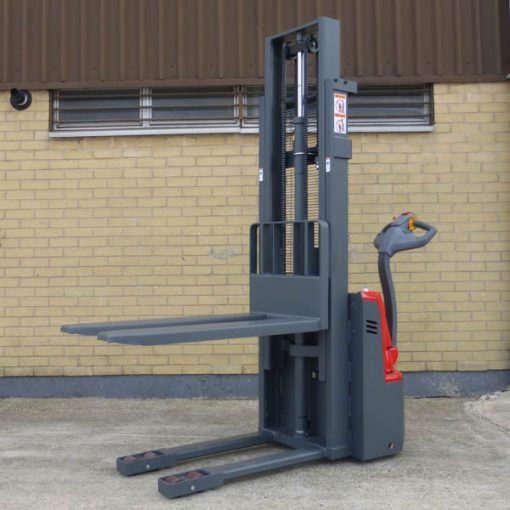

The LiftMate LES10 fully powered stackers are lightweight, compact, powerful and reliable. Both drive and lift movement are operated by buttons on an ergonomically designed handle. These stackers are ideal for small warehouses and factories.

The LES10 stackers are fitted with 2 powerful 120Ah batteries and on board charger which can be connected to standard mains 230V/13A 3-pin socket.

240V charger - standard, included. Optional 110V charger available.

They are fitted with fixed width wrapover forks and are designed for handling Euro pallets and other open bottom pallets and cages.

Technical Specifications:
Model LES 10.16 LES 10.30
Capacity 1000kg
Load Centre 600 mm
Max. Lift Height 1600 mm 3000 mm
Fork Length 1150 mm
Width over Forks 560 mm
Overall Length 1740 mm 1780 mm
Overall Width 820 mm
Overall Closed Height 1985 mm
Mast Type Single
Battery 12V / 120Ah x 2
Wheels Polyurethane
Wheels Diameter ø 195 / 80 mm

Additional information

Maximum Lift Height

1600mm, 3000mm
