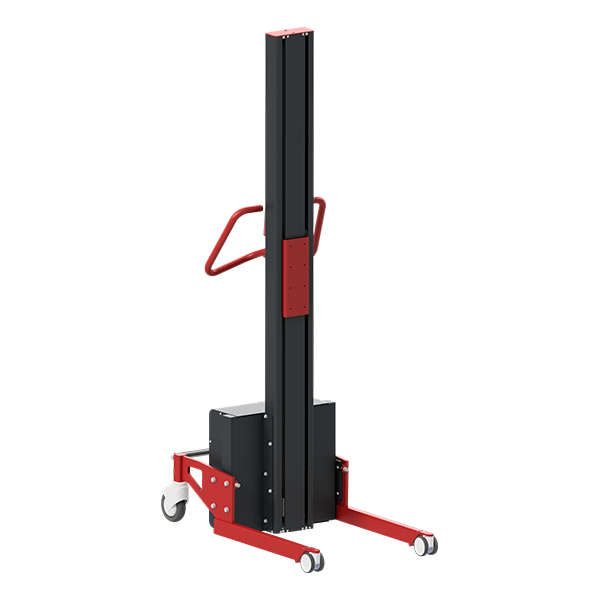

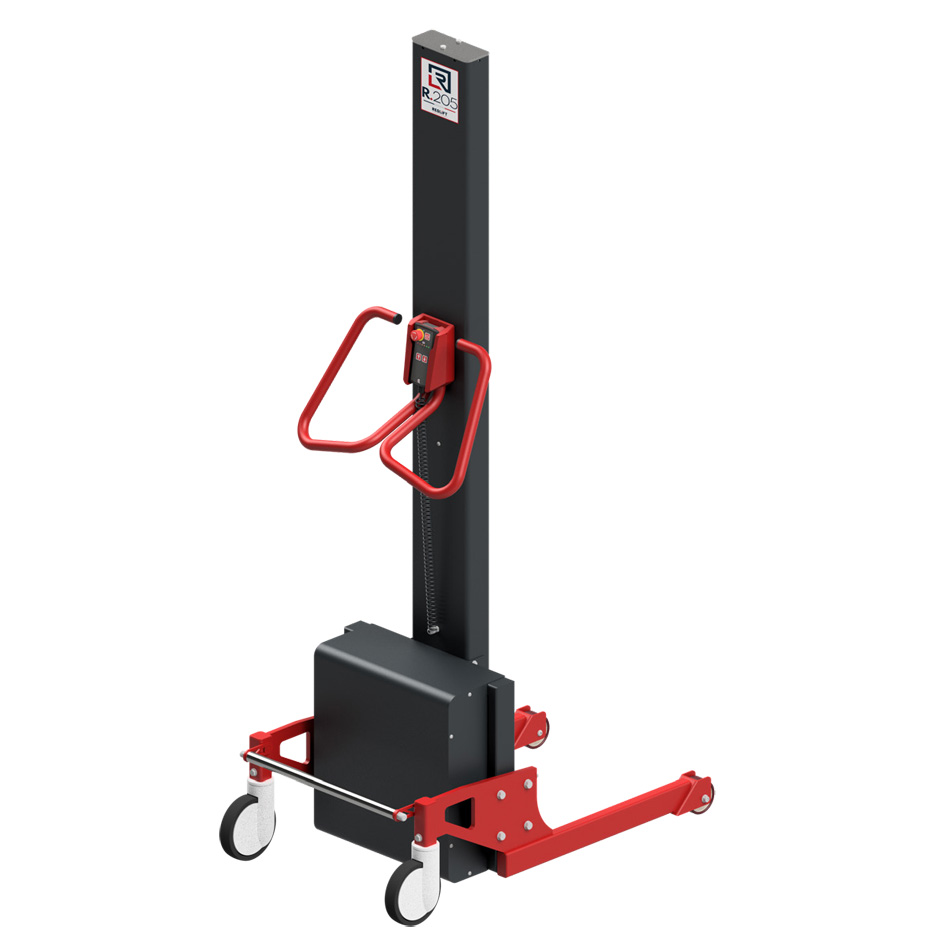

Reglift Electric Lifter 205kg Capacity
- The Reglift R.205 lifter is a compact, robust and modular design stacker with a 205kg maximum load capacity
- Customizable with a wide range of tools allowing you to handle loads such as reels, drums, coils, bins, pallets, rolls etc.
- The lifter’s tool holder accommodates mechanical and electric tools with a quick change system
- The Reglift R.205 lifter is suitable for use in industrial production, service, automotive, logistics and other sectors
- The R.205 has a capacity of 205kg including the tool weight, at a distance of 400mm from the mast
- It has overload protection, a safety clutch and soft start for easy load handling
- Designed with an ergonomic handle for multi-position grip
- The Remote control is integrated into the handle for optimal grip
- Great manoeuvrability thanks to its ABS wheels mounted on ball bearings
- 3 position braking system
- Choice of 3 maximum lift heights (1180, 1560 or 2000 mm)

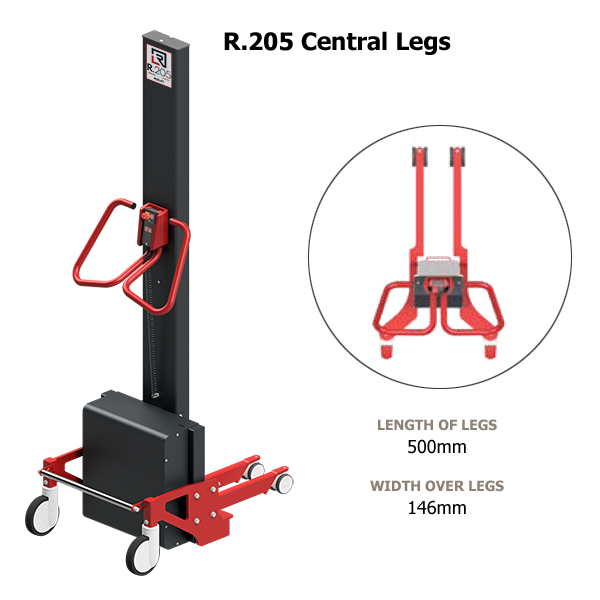

- REG-205-2121 & REG-205-3121 available with optional Central legs – Contact us for more information
- IP 44 steel finishing
| Reference: | REG-205-2121 | REG-205-3121 | REG-205-4121 |
| Max. Capacity: | 205 kg | 205 kg | 180 kg |
| Max. Lift Height: | 1180 mm | 1560 mm | 2000 mm |
| Total Height: | 1560 mm | 1940 mm | 2390 mm |
| Type of Legs: | Standard | ||
| Length of Legs: | 500 mm | ||
| Width over Legs: | 520 mm | ||
| Material: | Steel | ||
| Belt Operating Capacity: | 539 kg | ||
| Belt Breaking Load: | 2090 kg | ||
| Command Type: | Remote Control | ||
| Battery Type: | 4 AGM (Tot: 24 V – 18 Ah) | ||
| Total Battery Weight: | 9.7 kg | ||
| Charger: | External – 230 V – 50-60Hz | ||
| Number of Cycles: | 80-150 cycles | ||
| Battery Indicator: | On the remote control unit | ||
| Recharge Time: | 15h for 100% | ||
| Motor Speed: | 120 mm/s | ||
| Front Wheels: | Double Ø 80 – fixed | ||
| Rear Wheels: | Ø 150 – with central brake | ||
| Weight: | 86 kg | 89 kg | 94 kg |
