Reglift Electric Lifter 285kg Capacity
- The Reglift R.285 lifter is a robust and modular design stacker with a 285kg maximum load capacity

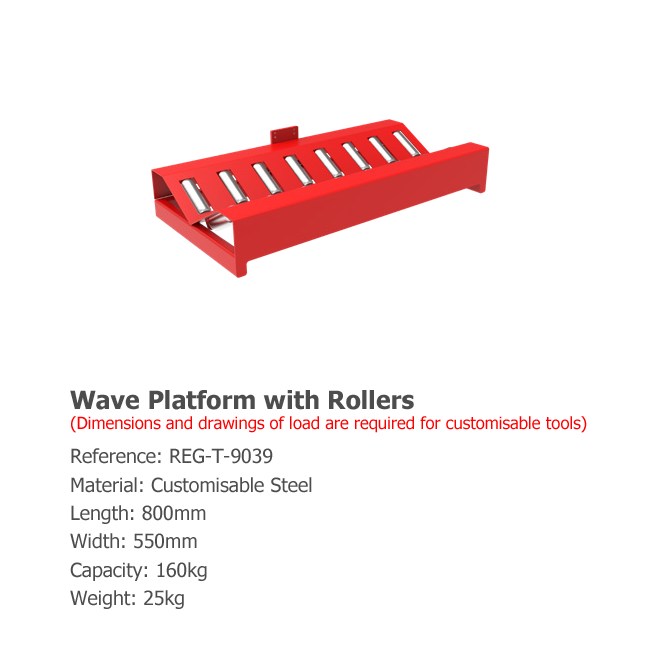

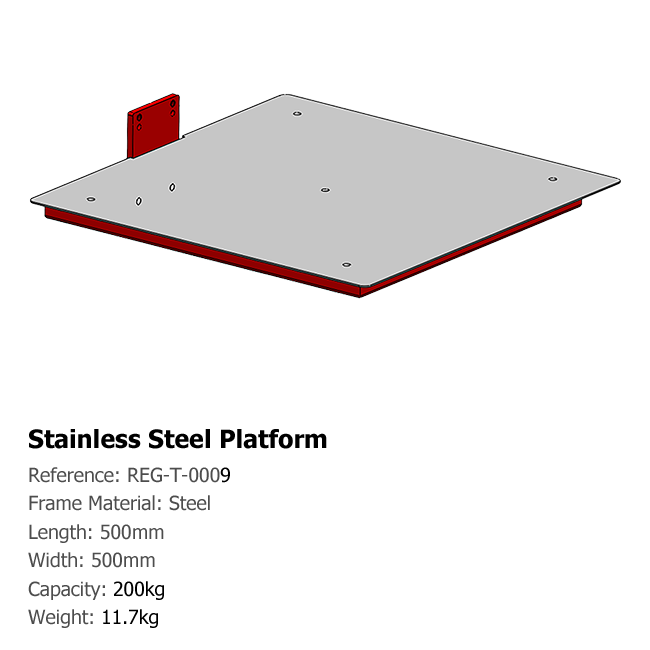

- Customizable with a wide range of tools allowing you to handle loads such as reels, drums, coils, bins, pallets, rolls etc.
- The lifter’s tool holder accommodates mechanical and electric tools with a quick change system
- The Reglift R.285 lifter is suitable for use in industrial production, service, automotive, logistics and other sectors
- The R.285 has a capacity of 285kg including the tool weight, at a distance of 400mm from the mast
- It is equipped with a double mast with a transparent part to facilitate the user’s view when moving
- It has overload protection, a safety clutch and soft start for easy handling
- Designed with an ergonomic handle for multiposition grip
- The Remote control is integrated into the handle for optimal grip
- Great manoeuvrability thanks to its ABS wheels mounted on ball bearings
- IP 44 steel finishing
| Reference: | REG-285-3121 | REG-285-3131 | REG-285-3141 |
| Max. Capacity: | 285 kg | ||
| Max. Lift Height: | 1440 mm | ||
| Total Height: | 2000 mm | ||
| Type of Legs: | Standard | ||
| Length of Legs: | 540 mm | 690 mm | 890 mm |
| Width over Legs: | 515 mm | ||
| Material: | Steel | ||
| Belt Operating Capacity: | 834 kg | ||
| Belt Breaking Load: | 3230 kg | ||
| Command Type: | Remote Control | ||
| Battery Type: | 1 Lithium (Tot: 48 V – 18 Ah) | ||
| Total Battery Weight: | 5.92 kg | ||
| Charger: | External – 200-240 V – 50-60Hz | ||
| Number of Cycles: | 130 cycles | ||
| Battery Indicator: | On the remote control unit | ||
| Recharge Time: | 2h for 100% | ||
| Motor Speed: | 120 mm/s | ||
| Front Wheels: | Double Ø 80 – fixed | ||
| Rear Wheels: | Ø 160 – with individual brake | ||
| Weight: | 151 kg | 152 kg | 153 kg |
