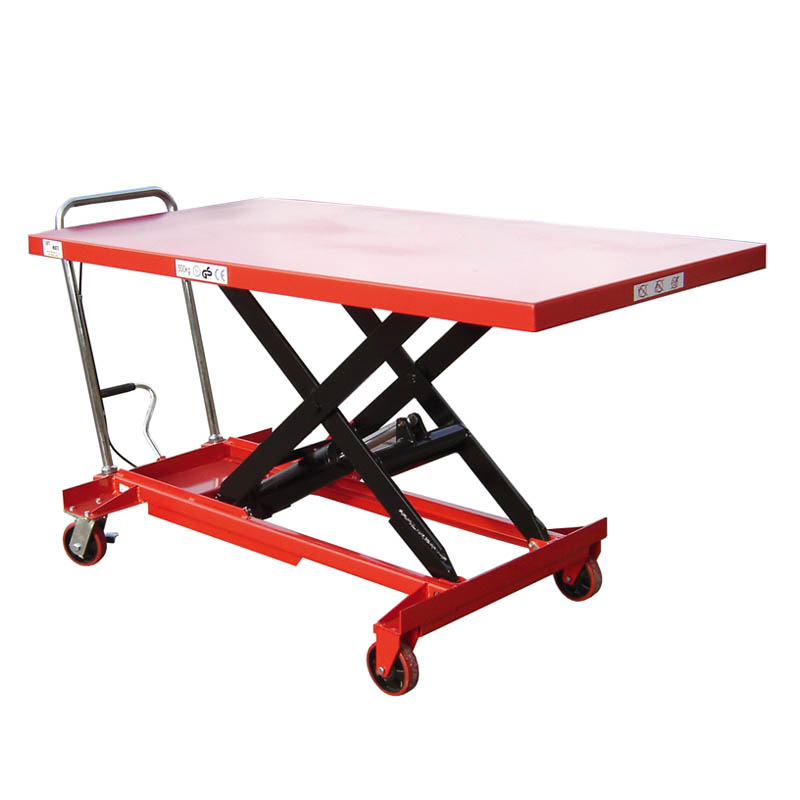

Scissor Lift Table with Large Platform (TXL500L) – 500kg


SKU: TXL500L Category:


Scissor Lift Table with Large Platform

The LiftMate mobile scissor table range has been designed, developed and built to give long service with minimum maintenance required.

The TXL500L is highly manoeuvrable and easy to use. It is fitted with a large platform to enable the lifting of larger than normal loads.

  • Manual hydraulic operation (foot pump to lift / hand lever to lower)
  • Hand operated, fully controllable lowering speed
  • Can be used safely at any height
  • Fitted with two total stop brakes as standard to prevent the table from moving when loading and unloading
  • Fitted with an overload valve
  • Hard wearing and non-marking polyurethane tyres prevent damage to floors
  • Swivel wheels fitted with thread guards
  • Epoxy powder coated finish for durability
  • Issued with a test certificate in conformance with EU standards EN 1570
Technical Specifications:
Capacity: 500kg
Platform Size (L x W): 1600 x 800 mm
Closed Height: 310 mm
Raised Height: 910 mm
Handle Height: 970 mm
Wheels Diameter: ø 125 mm
Approx. Weight: 134kg
