Description

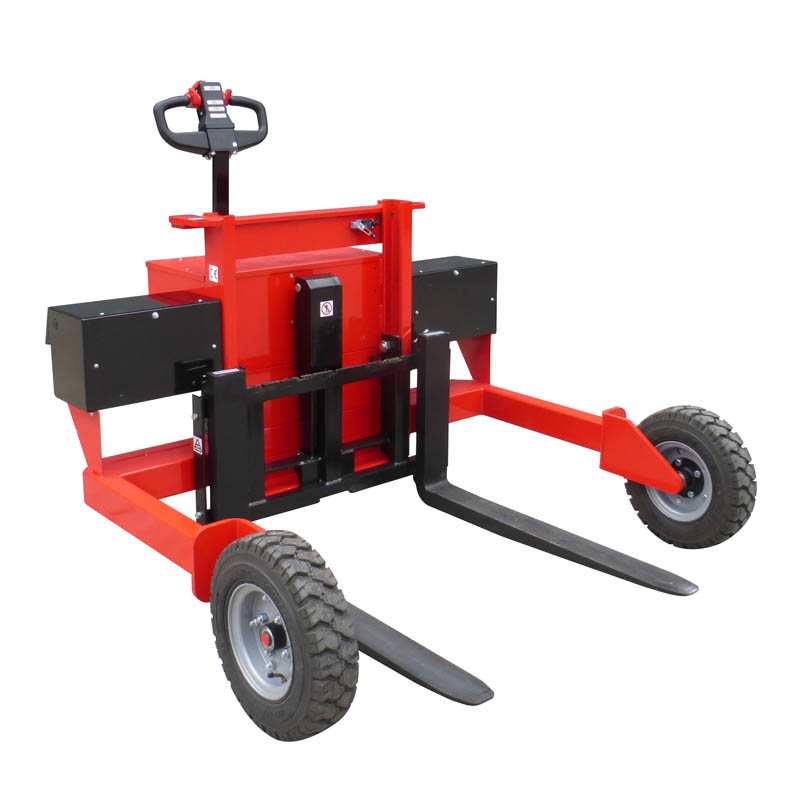

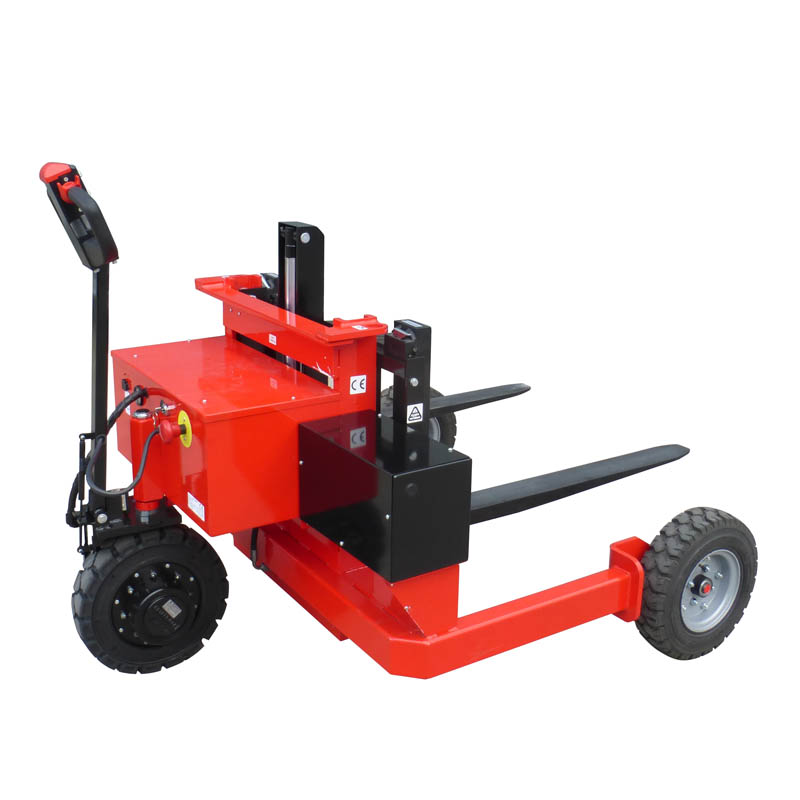

Electric Rough Terrain Pallet Truck
This heavy duty electric rough terrain pallet truck has two 12V batteries which allows it to be used as a fully powered pallet truck.
- Electric lift and drive
- 2 heavy duty batteries for full day operation
- Built-in charger
- Great manoeuvrability
- Adjustable width over forks
- Wheels fitted onto sealed bearings
- Pneumatic load tyres
- Special sizes can be offered
- 240V charger - standard, included. Optional 110V charger available
| Capacity | 1500kg |
| Drive Wheel Motor | 1 x 2500 AC |
| Battery | 2 x 100A |
| Load Centre | 500 mm |
| Length of Forks | 1000 mm |
| Width over Forks | Adjustable 160 - 900 mm |
| Max. Pallet Size | 1200 x 1200 mm |
| Straddle Gap | 1266 mm |
| Overall width | 1539 mm |
| Overall Length | 1811 mm |
| Lowered Fork Height | 50 mm |
| Raised Fork Height | 400 mm |
| Wheels | Super Elastic / Pneumatic |
| Gradient | TNE1500-AC |
| 0% | 1500kg |
| 1% | 1500kg |
| 3% | 1500kg |
| 4% | 1500kg |
| 5% | 1500kg |
| 6% | 1500kg |
| 8% | 1500kg |
| 10% | 1500kg |
| 14% | 1500kg |
| 15% | 1500kg |
| 18% | 1500kg |
| 20% | - |
| 23% | 1200kg |
| 25% | - |
| 30% | 800kg |
| 40% | 500kg |
| 45% | - |
| 50% | 300kg |
| 60% | 0kg |
NOTE: Please allow approx. 6 weeks for delivery
