Narrow Rough Terrain Pallet Trucks (TNN1500)

Name: Narrow Rough Terrain Pallet Trucks (TNN1500)
Brand: Liftmate
SKU: 2441
Availability: InStock

From £2095 - To £2095
(From £2,514.00 - To £2,514.00 including VAT)

Model

Clear

Height Adjustment Forks

Tow Hitch Kit

Pair of Fork Extensions

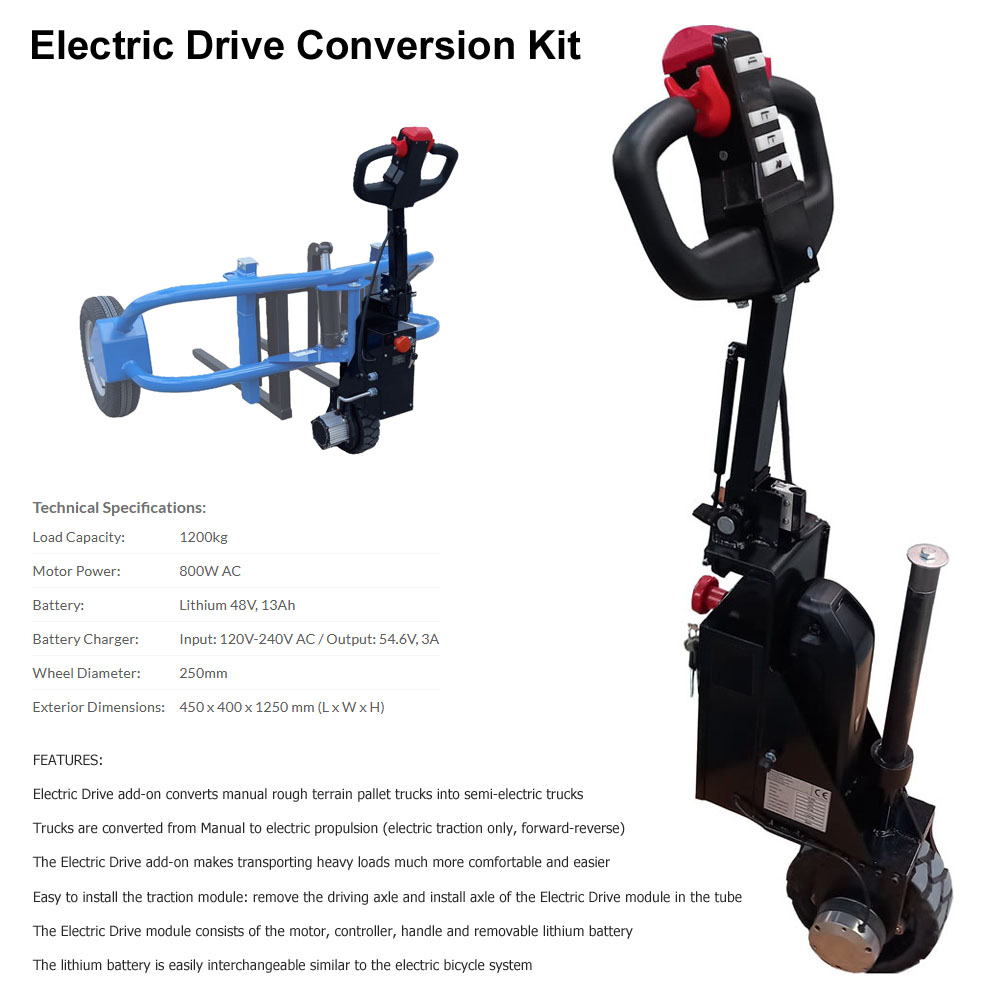

Electric Drive Conversion Kit

SKU: N/A Category: Terrain Pallet Trucks

Description
Additional information

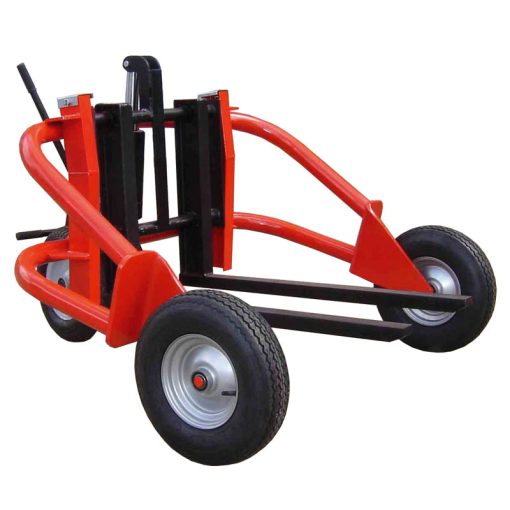

Narrow Rough Terrain Pallet Trucks

This special narrow rough terrain pallet truck is available in 3 widths and is designed to handle pallets up to 800, 1000 or 1200mm wide. This model has all the heavy duty features of the standard TNV1500S rough terrain pallet truck, but offers a more manouverable truck for handling pallets.

Standard straddle gaps to suit 800, 1000 or 1200mm pallets. We are able to offer even narrower (and wider) rough terrain pallet trucks.

**Technical Specifications:**
Model	TNN1500/S-800	TNN1500/S-1000	TNN1500/S-1200
Capacity	1500kg
Load Centre	500 mm
Length of Forks	890 mm
Width over Forks	Adjustable 180 – 580 mm
Max. Pallet Sizes	800 x 1200 mm	1000 x 1200 mm	1200 x 1000 mm
Straddle Gaps	850 mm	1050 mm	1250 mm
Overall widths	1120 mm	1320 mm	1520 mm
Overall Length	1430 mm
Lowered Fork Height	50 mm
Raised Fork Height	230 / 285 mm
Wheels	Pneumatic ø 380 / ø 400 mm

OPTIONAL HEIGHT ADJUSTABLE FORKS Ideal for lifting and moving anchor blocks
No. of Fork Height Levels	5
Distance between Levels	100mm
Top Fork Level
Raised Height (front/back)	695 / 635 mm
Lowered Height	455mm
Bottom Fork Level
Raised Height (front/back)	305 / 235 mm
Lowered Height	ground level
