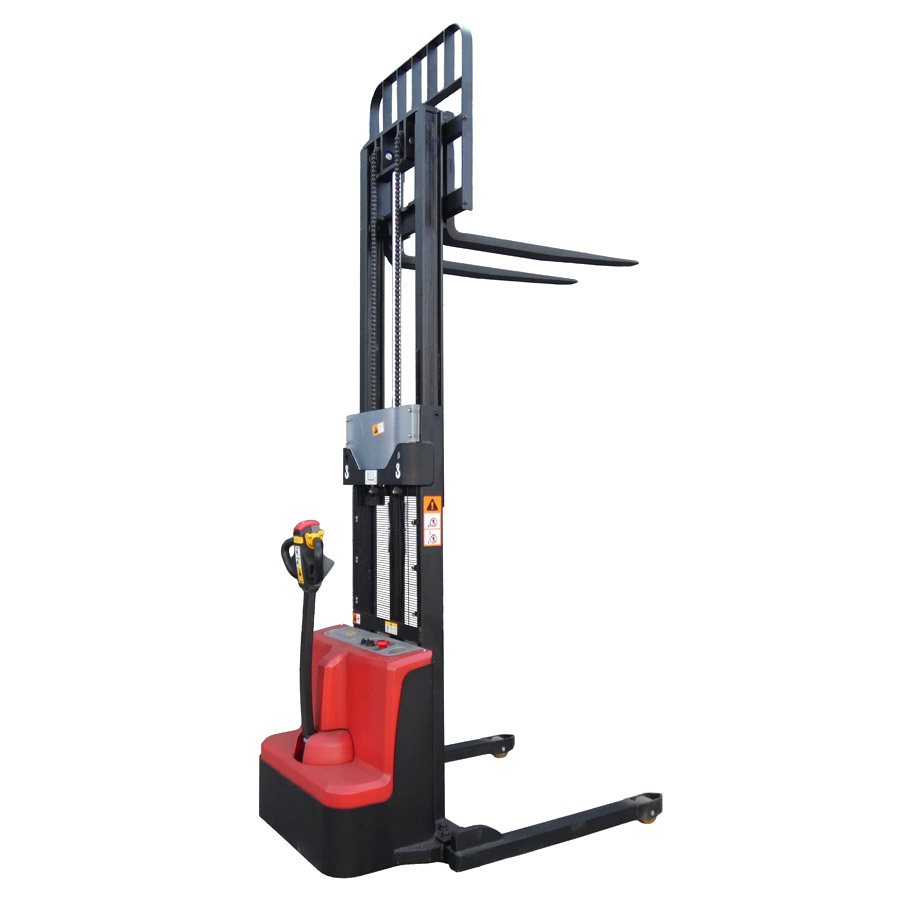

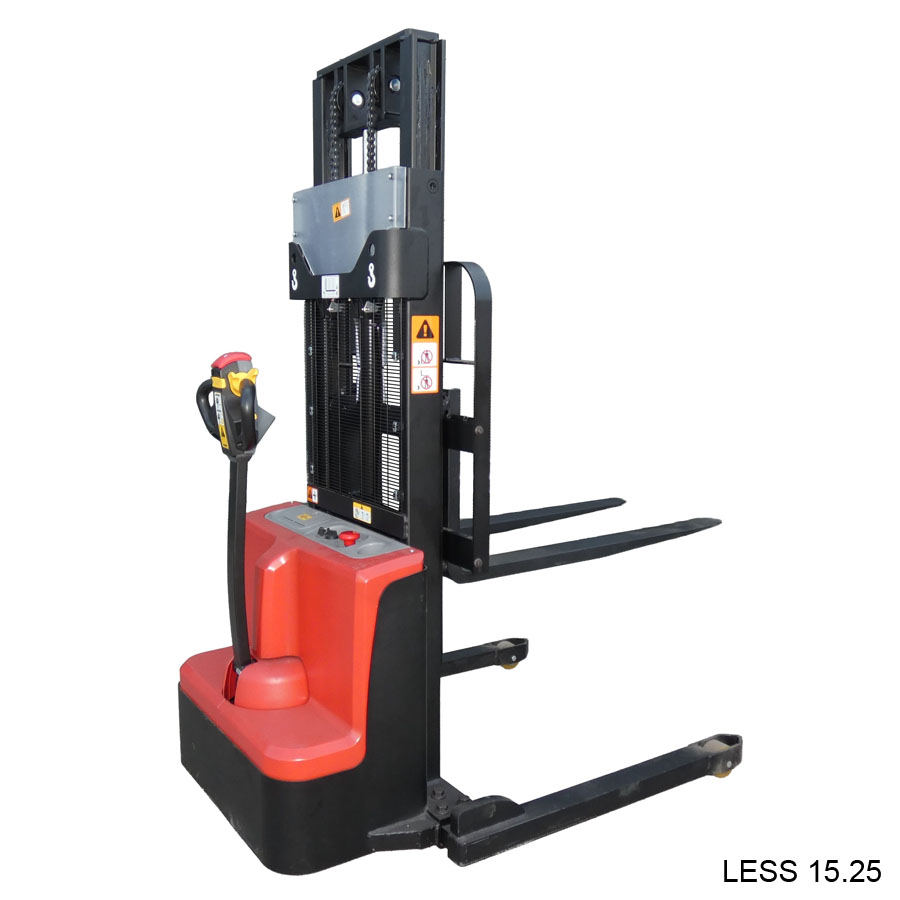

Fully Powered Electric Straddle Stackers
- The LiftMate LESS15 fully powered straddle stackers are lightweight, compact, powerful and reliable

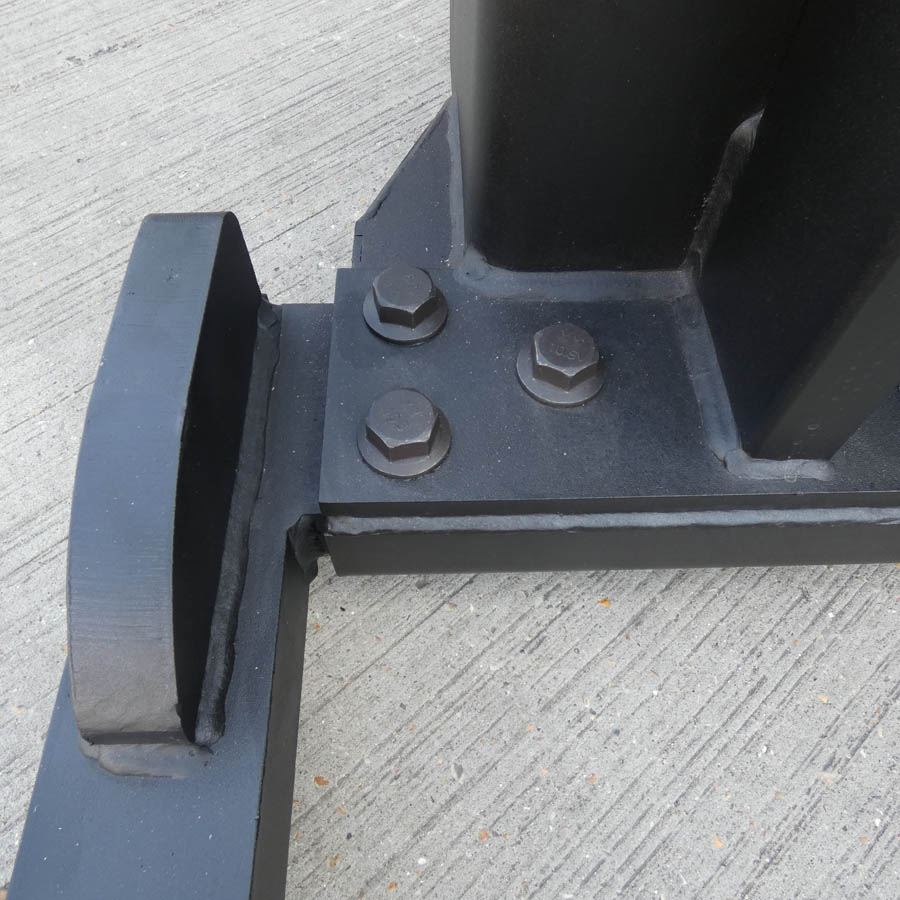

- Designed with adjustable straddle legs
- Ideal for handling imperial and CHEP pallets and similar closed bottom pallets and cages
- Fitted with adjustable forged forks for loading special and low profile pallets

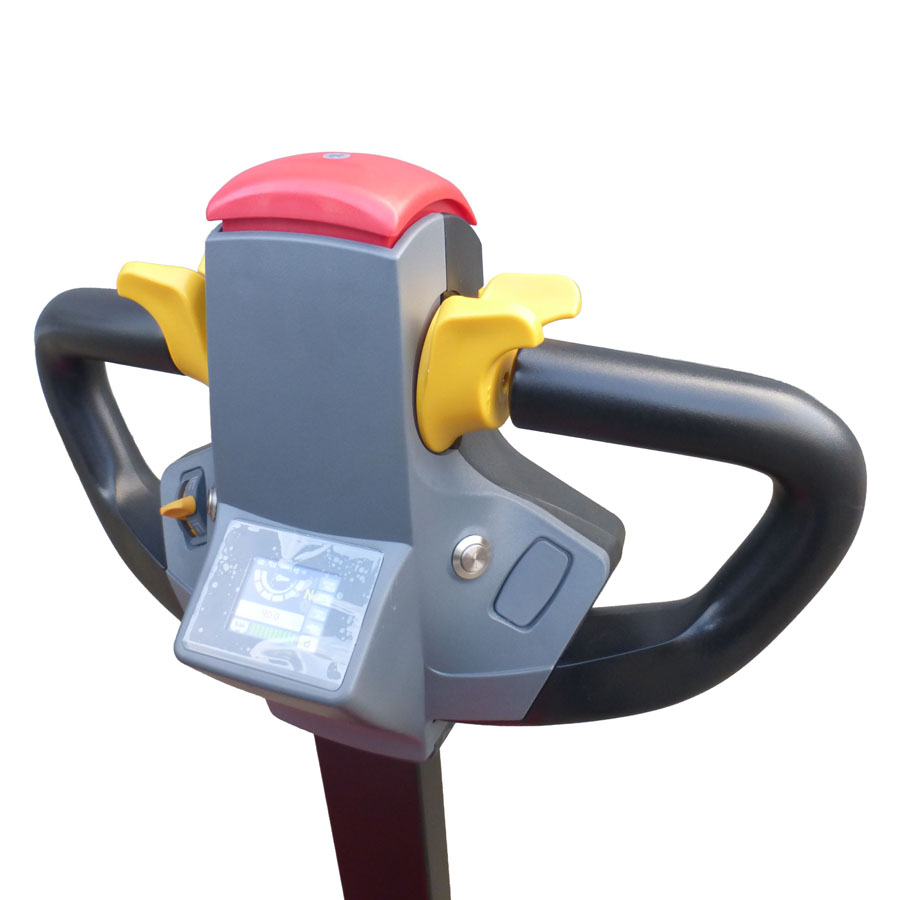

- Both drive and lift movement are operated by buttons on an ergonomically designed handle

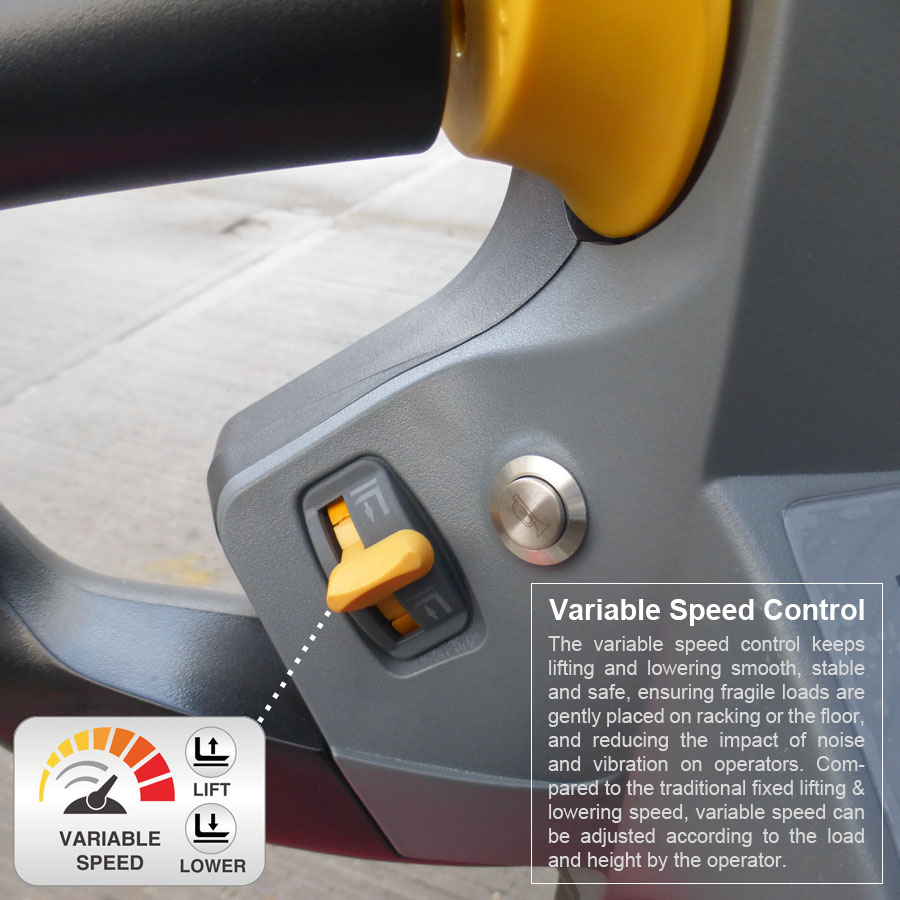

- Variable Speed Control of lifting and lowering ensures precision control and exact pallet placement
- These stackers are ideal for small warehouses and factories
- The LESS15 fully powered straddle stackers are fitted with 2 powerful 12V/71Ah batteries
- On board charger which can be connected to standard mains 230V/13A 3-pin socket
- 240V charger – standard, included. Optional 110V charger available
Model | LESS 15.20 | LESS 15.25 | LESS 15.35 |
Capacity | 1500kg | ||
Load Centre | 600 mm | ||
Max. Lift Height | 2000 mm | 2500 mm | 3500 mm |
Fork Length | 1150 mm | ||
Width over Forks | Adjustable 200 – 795 mm | ||
Overall Length | 1828 mm | ||
Overall Width | Adjustable: 1150, 1290, 1430 mm* | ||
Straddle Gap | Adjustable: 970, 1110, 1250 mm | ||
Overall Closed Height | 1520 mm | 1770 mm | 2270 mm |
Turning Radius | 1455 mm | ||
Mast Type | Double | ||
Battery | 12V / 71Ah x 2 | ||

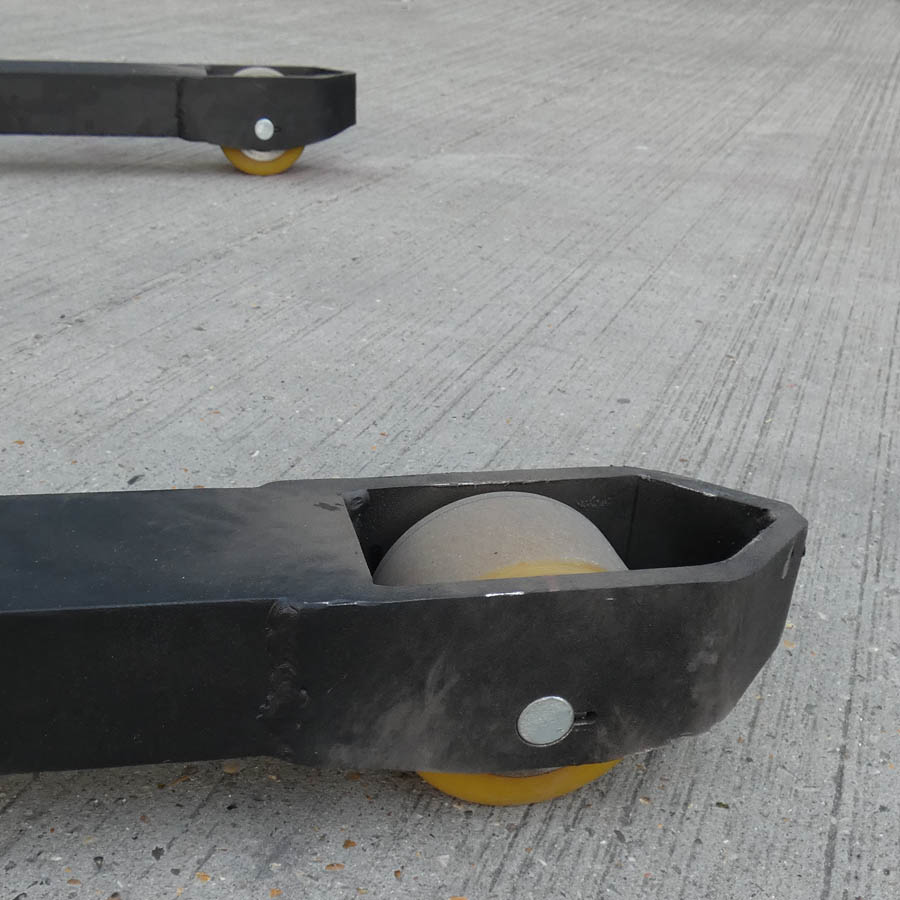

Wheels | Polyurethane | ||
Wheels Diameter | ø 210 / 100 mm |
* The Overall Width is based on the adjustable straddle gap choice.
