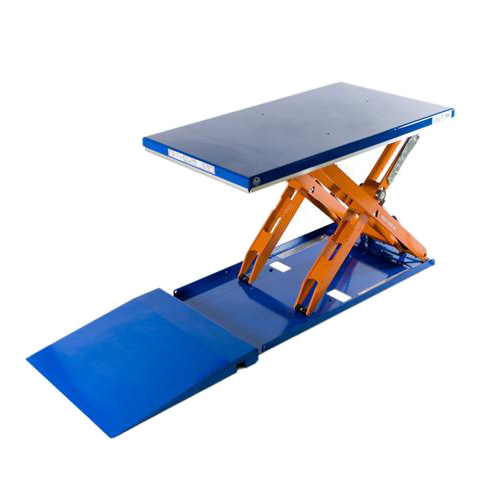

Low Profile Scissor Table with Ramp

From £6695.00 - To £6995.00
(From £8,034.00 - To £8,394.00 including VAT)

Clear
SKU: N/A Category:

Description

Low Profile Scissor Table with Ramp

  • Trap prevention touch sensitive trip bars under the perimeter of the lift platform
  • Hydraulic hose break protection valves, to prevent uncontrolled platform descent
  • Armoured hoses to provide hose damage protection
  • Overload protection to ensure the specified maximum capacity only is lifted
  • Low voltage 24v control system to prevent injury
  • Water & dust resistant electrical and hydraulic systems – IP54
  • Micro-processor controlled for the best reliability
  • Mechanical props for safe & secure maintenance
  • Chromed, honed, air tested hydraulic cylinders complete with high pressure seals
  • Tested to + 30% overload
  • Sealed for life, maintenance free bearings
  • Scissor arms constructed using steel profiles with torsion bars at points of maximum stress
  • Proven designs with over 100,000 lifts in operation
  • Solid steel pivot blocks, strength & stability
Technical Specifications:
Model LiTCL2000B LiTCL2000GB
Capacity 2000 kg 2000 kg
Platform Size (L x W) 1350 x 1000 mm 1350 x 1270 mm
Closed Height 100 mm 100 mm
Raised Height 920 mm 920 mm
Approx. Lift Time 24 seconds to full height
Power 3ph 380-500v remote unit with protective cover

Additional information

Platform Size

1350 x 1000 mm, 1350 x 1270 mm
