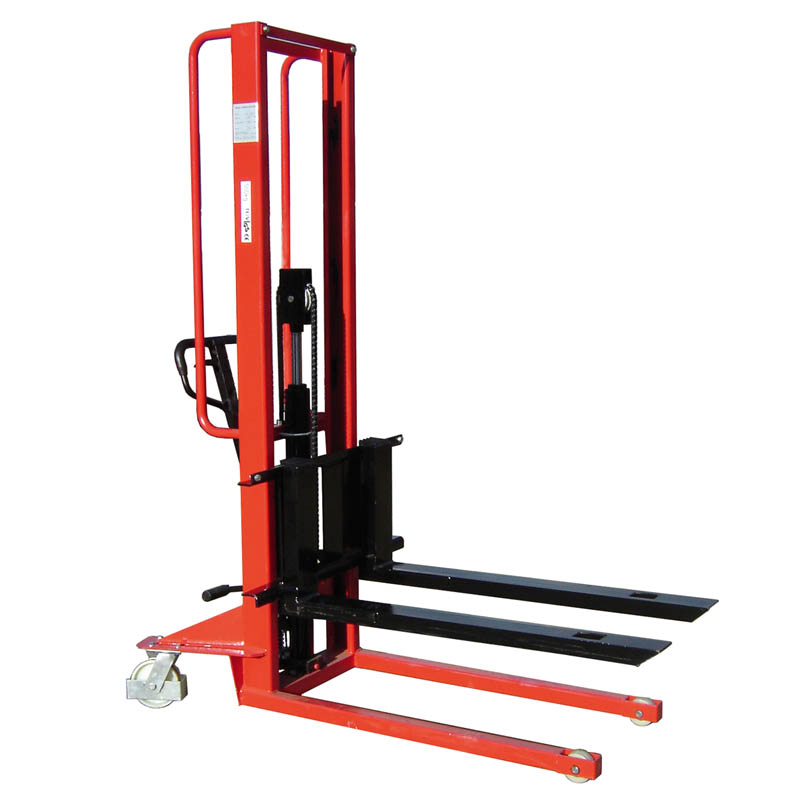

Manual Pallet Stacker with Adjustable Forks (KI-500/1600A)


SKU: KI-500/1600A Category:


Manual Pallet Stacker with Adjustable Forks

The LiftMate KI range of pallet stackers has an ergonomic pump handle and foot pump, giving you a choice of operation. The stackers are sturdy and compact constructed from robust steel profiles.

The LiftMate KI 500A pallet lifter is ideal for companies who wish to lift and handle euro pallets in a warehouse environment.

This pallet stacker has width-adjustable forks fitted as standard so it can also handle other (smaller or larger) open bottom pallets with ease. The lowering speed is fully adjustable.

Technical Specifications:
Capacity: 500kg
Load Centre: 600 mm
Max. Lift Height: 1600 mm
Fork Length: 1100 mm
Width over Forks: Adjustable 220 - 760 mm
Overall Length: 1640 mm
Overall width: 810 mm
Overall Closed Height: 2000 mm
Lowered Fork Height: 90 mm
Wheels: Nylon
Wheels Diameter: ø 150 / 80 mm
Approx. Weight: 231kg
