manual-stacker-2000kg-capacity-adjustable-forged-forks-1500mm-lift-height

manual-stacker-2000kg-capacity-adjustable-forged-forks-1500mm-lift-height-foot-pump

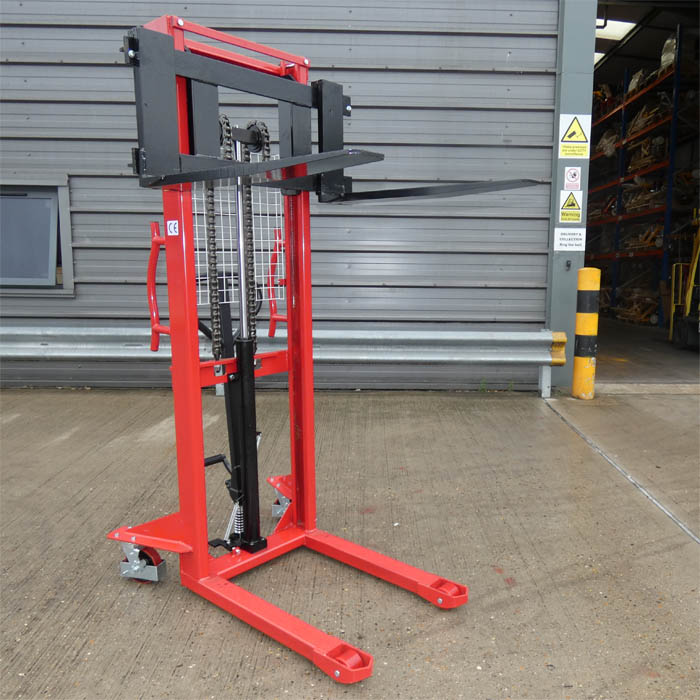

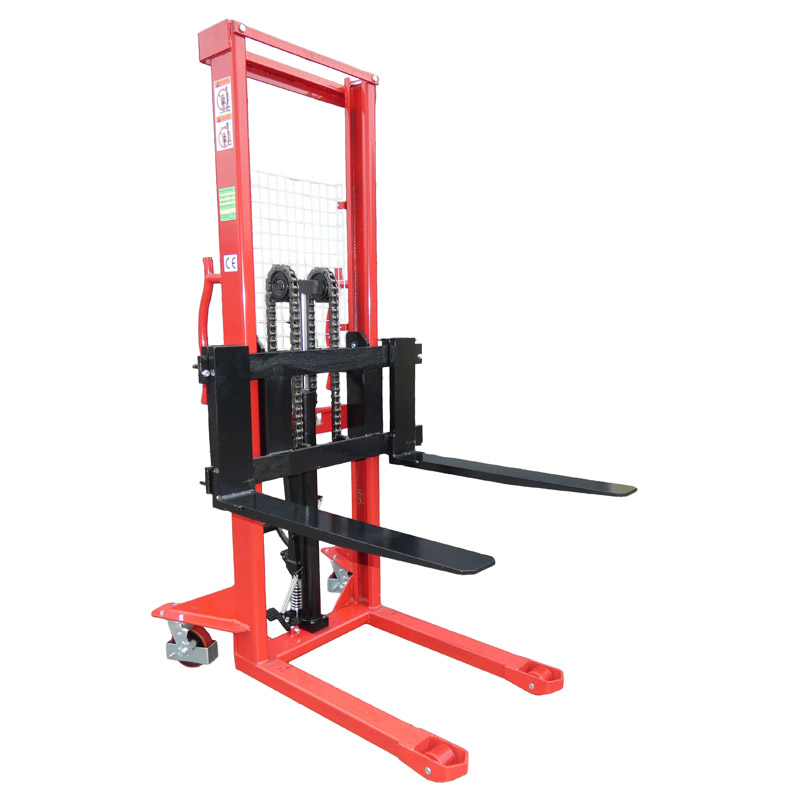

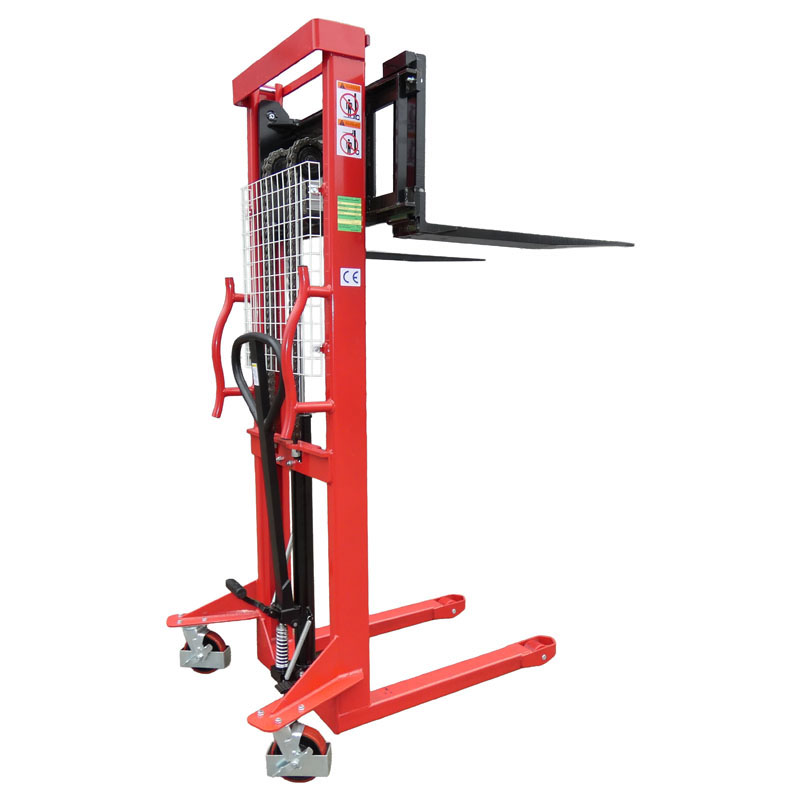

Manual Stacker with Adjustable Forged Forks, 2000kg Capacity

£1,995.00£2,394.00

SKU: KI/2000/1500/AF Category: Manual Pallet Stackers

Description

Manual Stacker with Adjustable Forged Forks, 2000kg Capacity

Compact design with strong steel construction
High quality steel mast ensures and durability

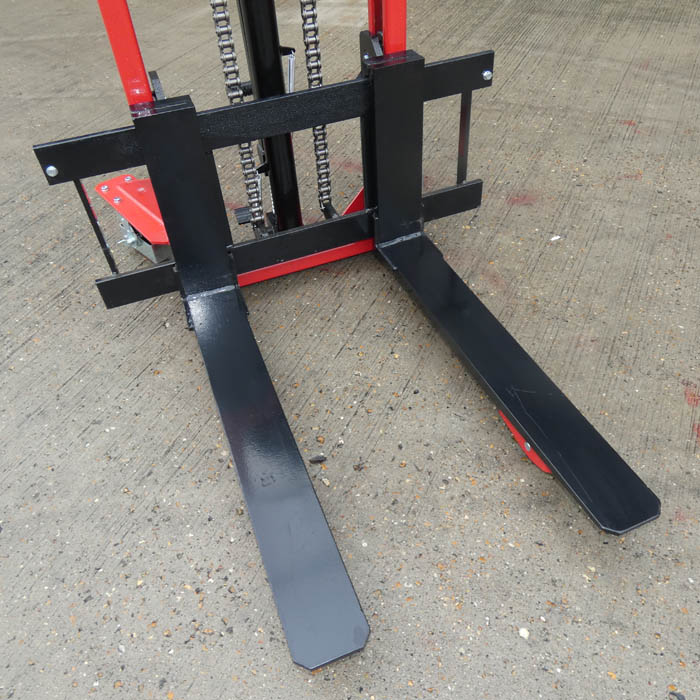

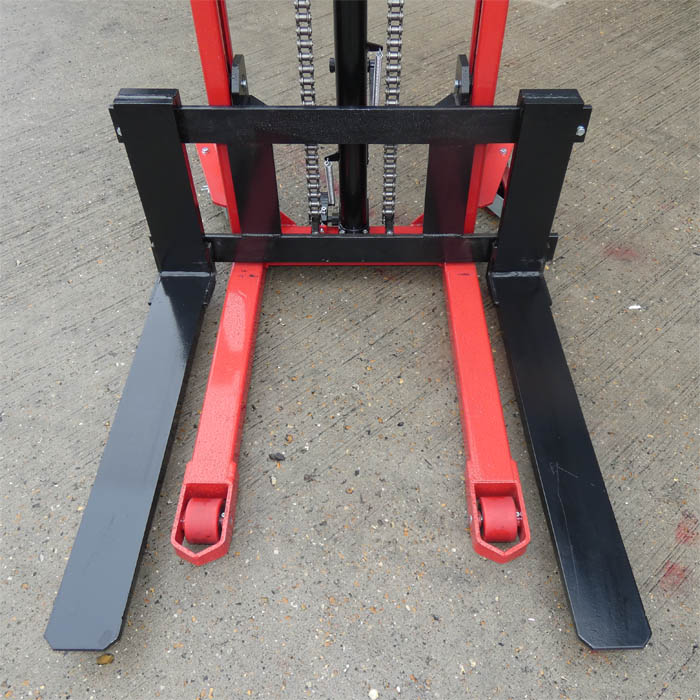

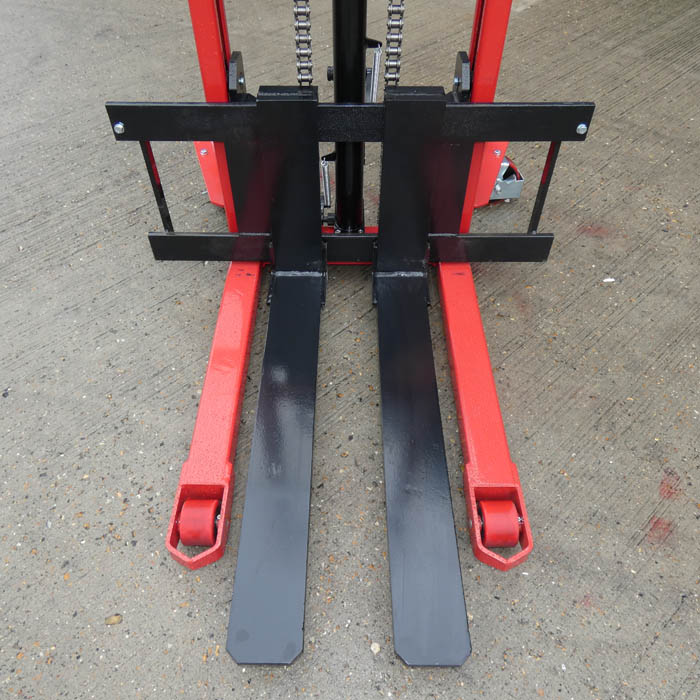

Adjustable forged forks
Screw release allows forks to descend

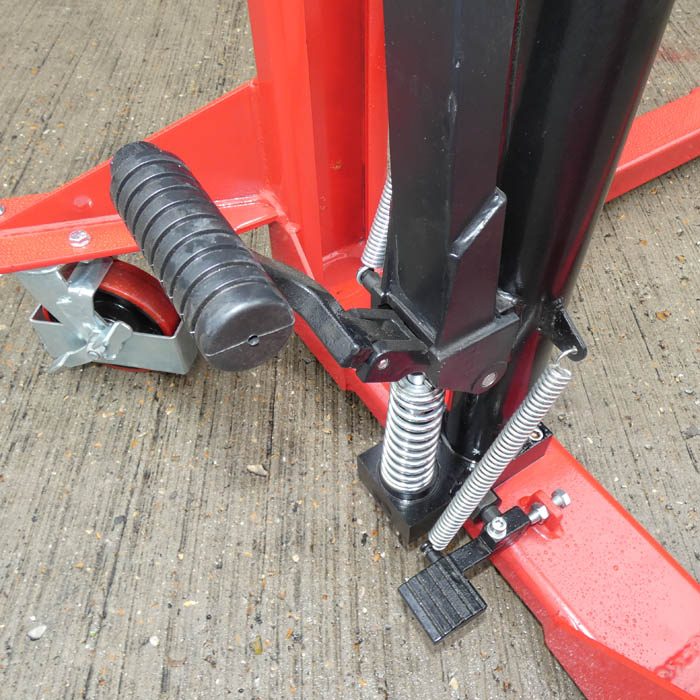

Foot operated lift for raising loads
With folded type foot pedal
Metal grid protects user from lift chains

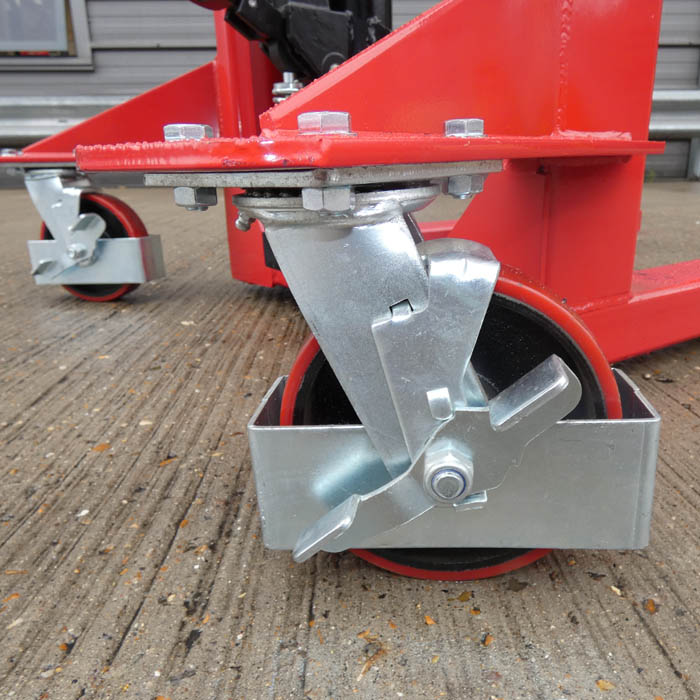

With safety wheel guard and brake system to ensure safety during operation

**Technical Specifications**
Model		KI/2000/1500/AF
Load capacity/rated load	Q(kg)	2000
Load centre distance	c(mm)	400
Fork height, lowered	h,,(mm)	90
Height, mast lowered	h,(mm)	2085
Max. lift height	h,(mm)	1500
Height, mast extended	h,(mm)	2085
Overall length	/,(mm)	1410
Overall width	b,(mm)	1000
Fork dimensions	s/e/l(mm)	30/120/900
Width overall forks	b,(mm)	250~950
Round clearance, laden, below mast	m,(mm)	25
Aisle width for pallets 1000×1200 crossways	A,(mm)	2050
Aisle width for pallets 800×1200 lengthways	A,(mm)	2040
Turning radius	W,(mm)	1250
Lift speed (laden/unladen)	mm/time	18/20
Lowering speed (laden/unladen)	mm/s	Manual control
Service weight	kg	292
