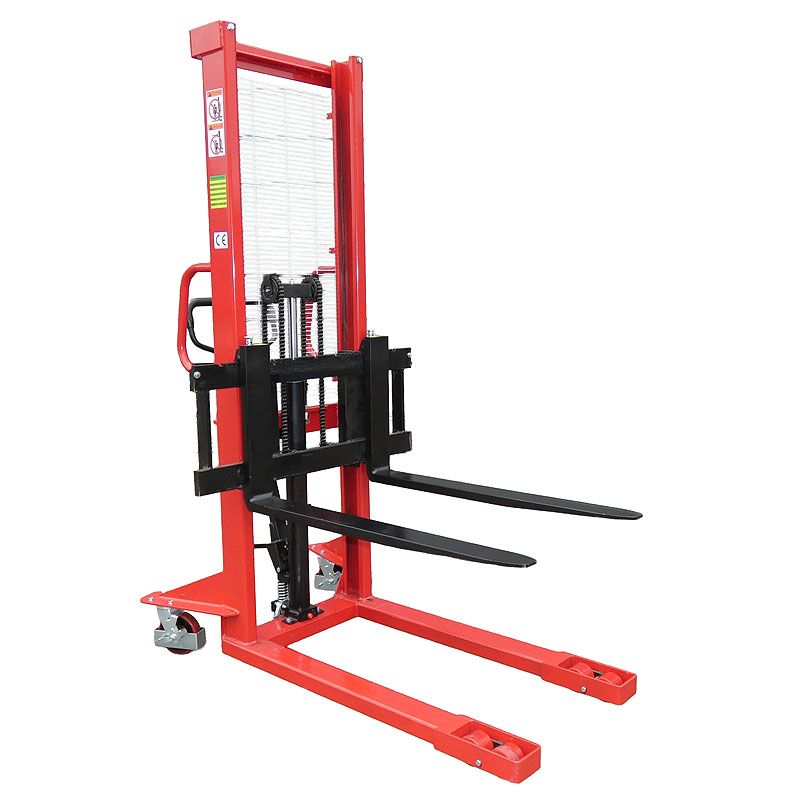

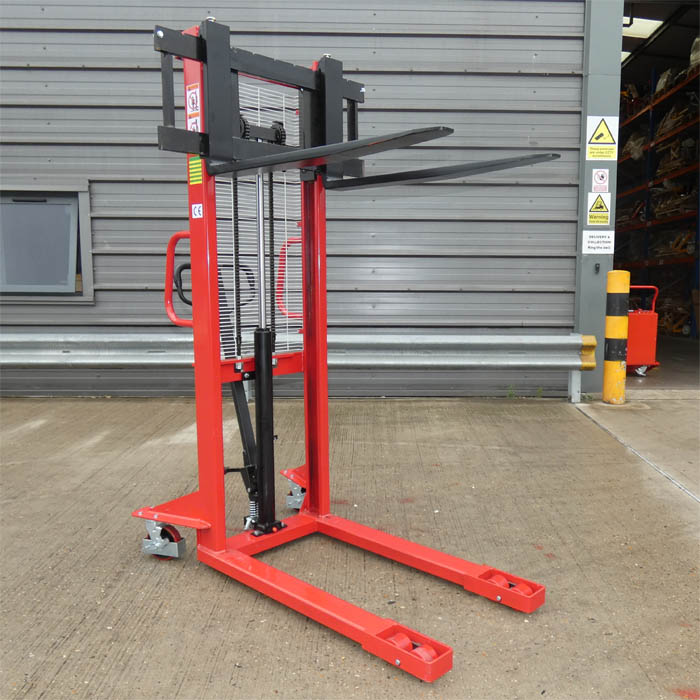

Manual Stacker with Adjustable Forged Forks, 1500kg Capacity

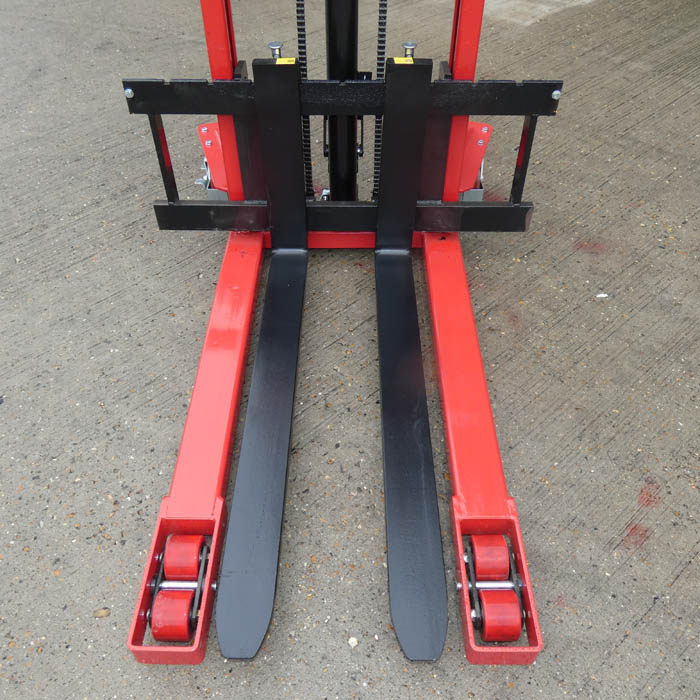

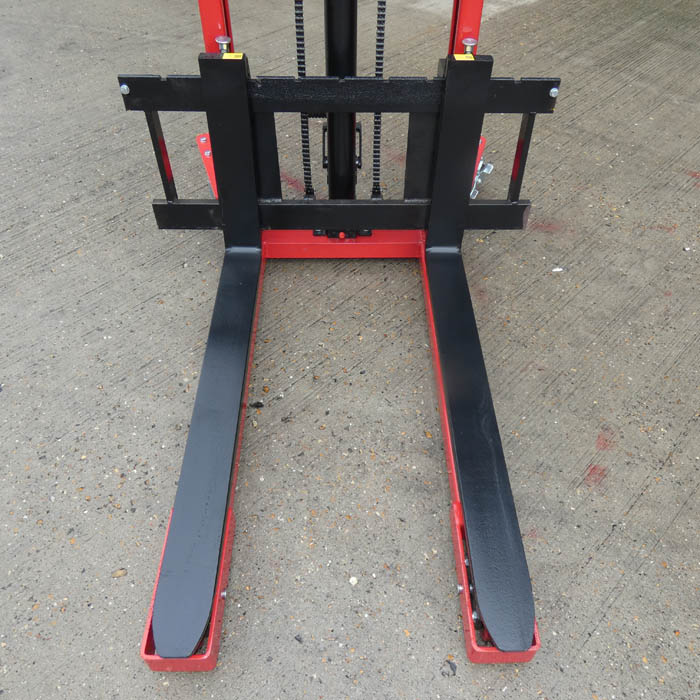

- With adjustable forks between 200-950mm
- Maximum Lifting Height of 1600mm
- High quality steel mast ensures rigidity and durability

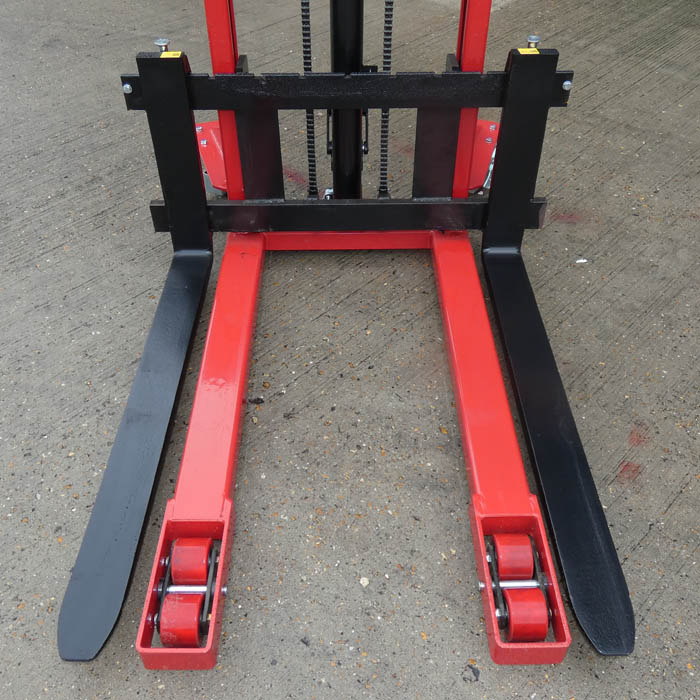

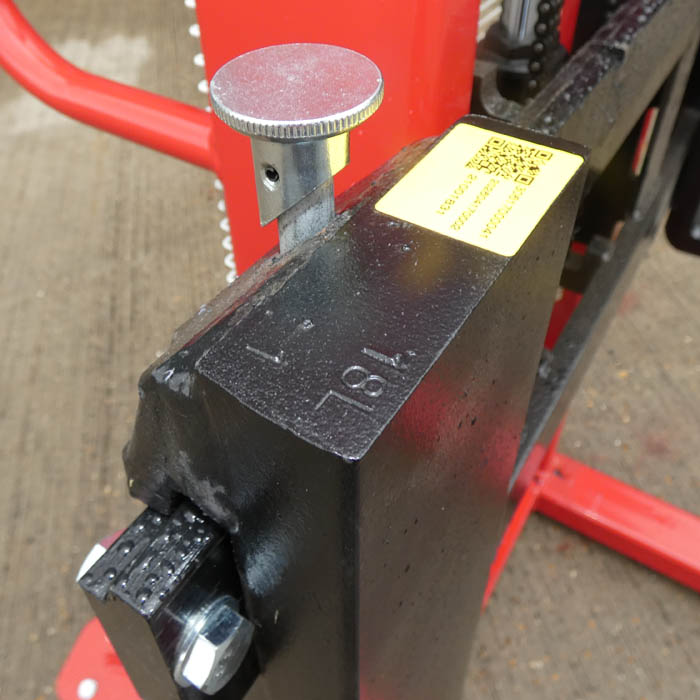

- Adjustable forged forks
- High efficient pumps makes the control easier to operate

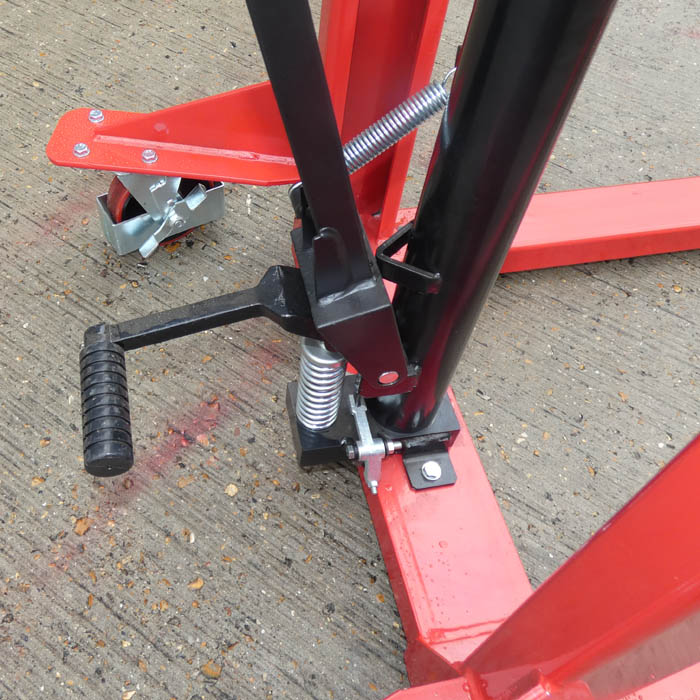

- Foot and hand controlled lifting function allows the operator to work without having to perform extreme body movements

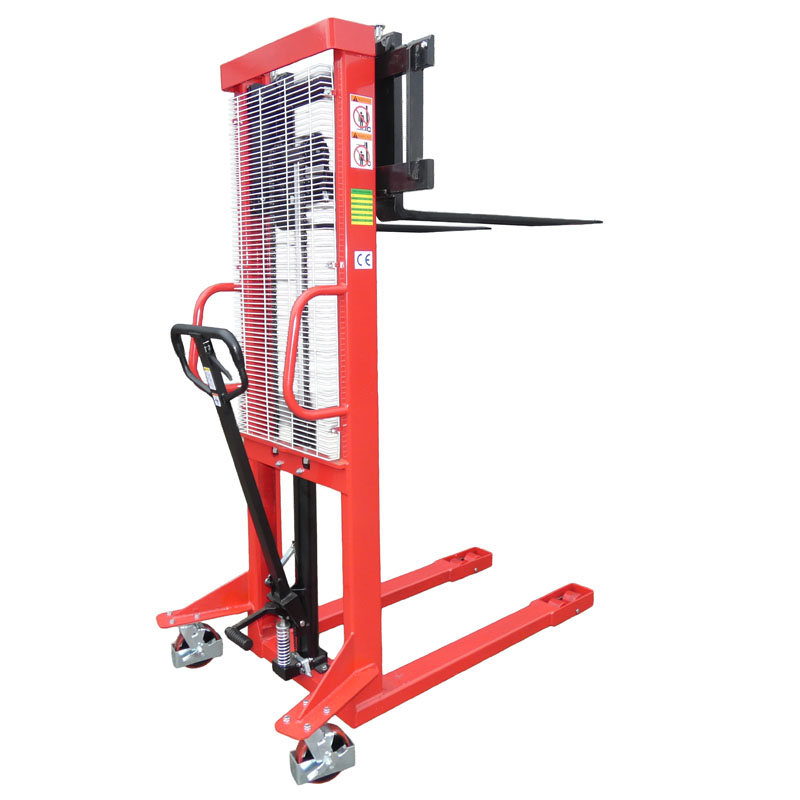

- Metal grid protects user from lift chains
- With safety wheel guard and brake system to ensure safety during operation

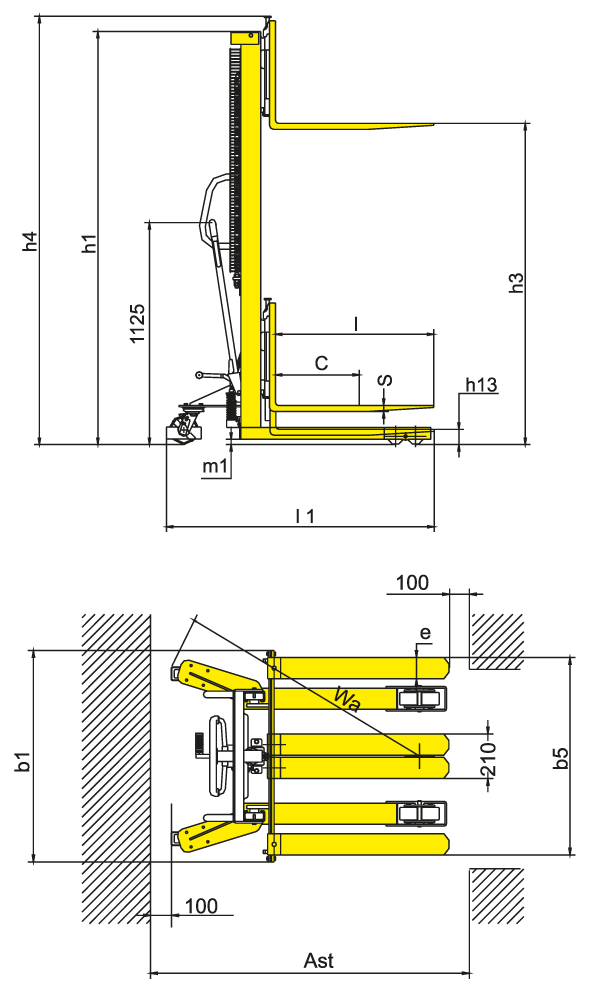

| Model | KI/1500/1600/AF | |
| Load capacity/rated load | Q(kg) | 1500 |
| Load centre distance | c(mm) | 500 |
| Fork height, lowered | h,,(mm) | 90 |
| Height, mast lowered | h,(mm) | 2085 |
| Max. lift height | h,(mm) | 1600 |
| Height, mast extended | h,(mm) | 2125 |
| Overall length | /,(mm) | 1355/(1615) |
| Overall width | b,(mm) | 1000 |
| Fork dimensions | s/e/l(mm) | 30/100/800(1060) |
| Width overall forks | b,(mm) | 200~950 |
| Ground clearance, laden, below mast | m,(mm) | 25 |
| Aisle width for pallets 1000×1200 crossways | A.,(mm) | 2025(2185) |
| Aisle width for pallets 800×1200 lengthways | A.,(mm) | – (2068) |
| Turning radius | W,(mm) | 1235(1480) |
| Lift speed (laden/unladen) | mm/time | 16/18 |
| Lowering speed (laden/unladen) | mm/s | Manual control |
| Service weight | kg | 280(295) |
