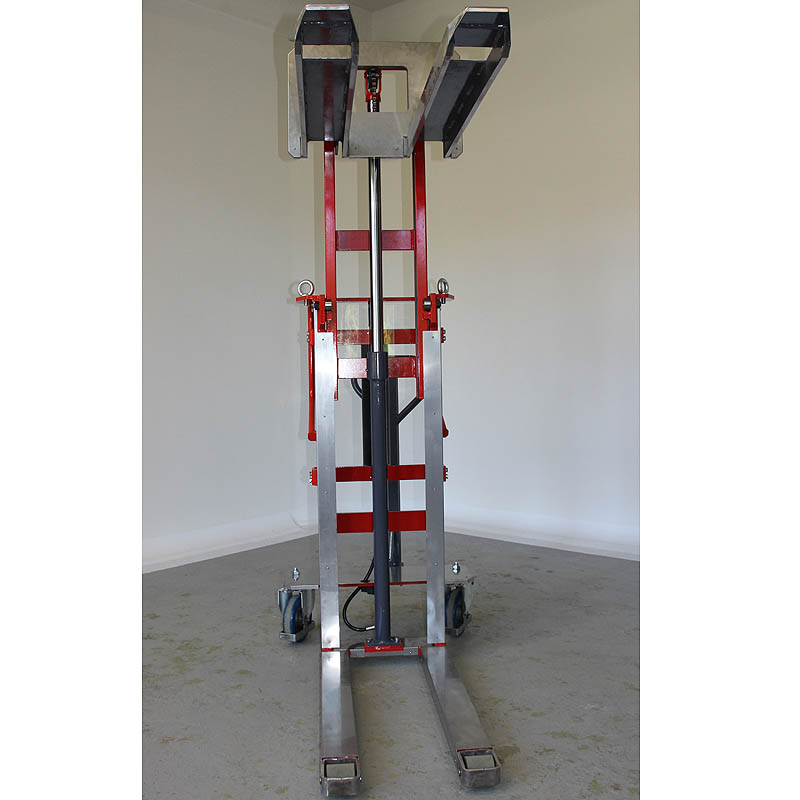

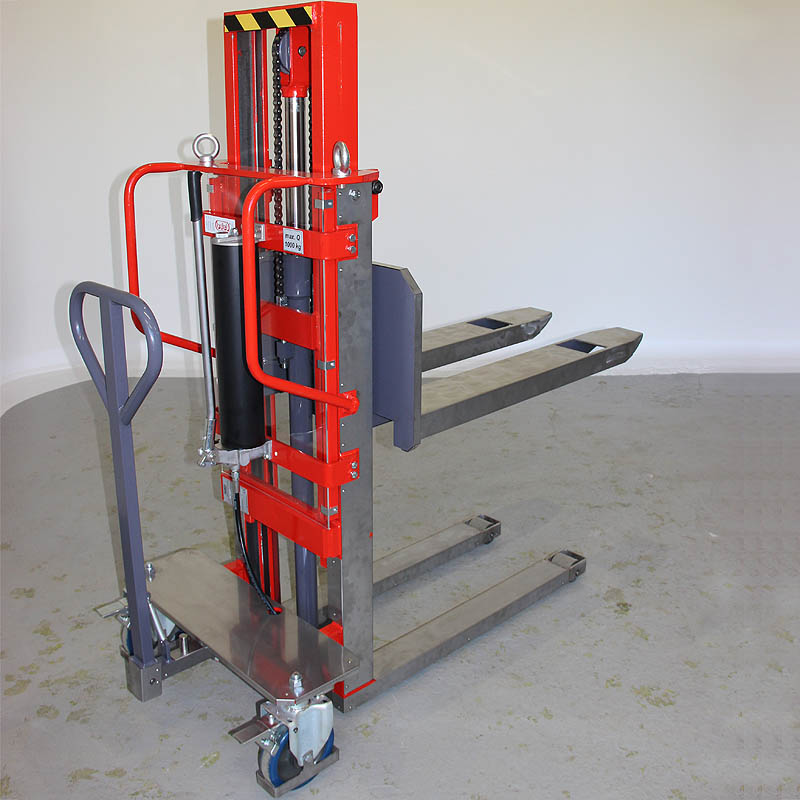

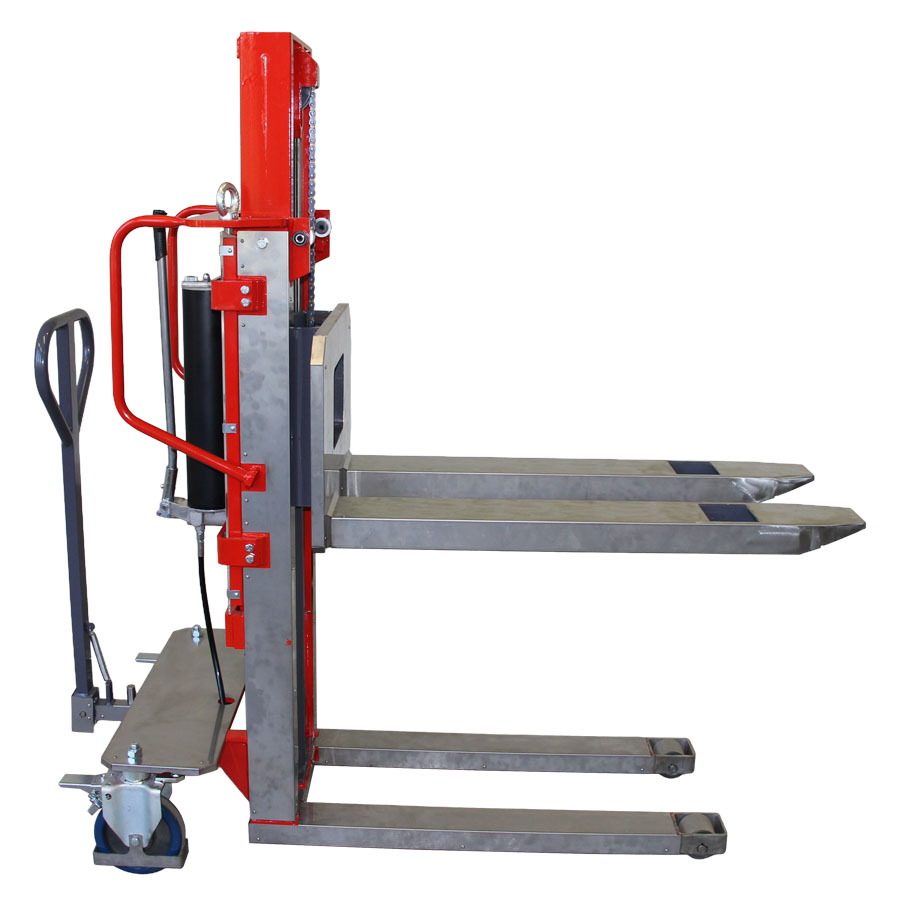

Heavy Duty ATEX Rated Manual Stackers, 1000kg Capacity
Designed for use in areas in which an explosive atmosphere is generated occasionally due to different gases or dust
- Approved for operations in explosive atmospheres
- Suitable for Zone 1 & Zone 2 (gas), also suitable for Zone 21 & Zone 22 (dust)
- Suitable for the pharmaceutical, oil, gas and paint industries
- Double acting pump (Pumps on the way down and up)
- Optional 500kg or 1500kg capacity

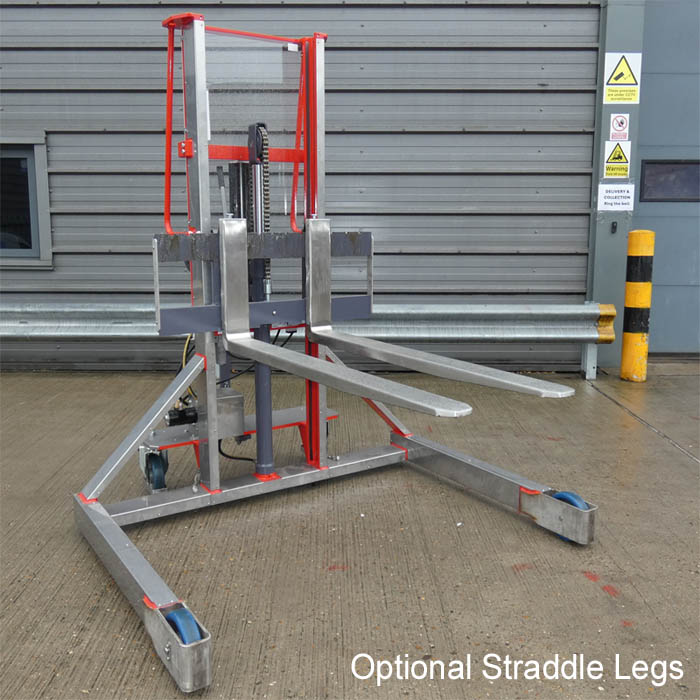

- Optional straddle legs

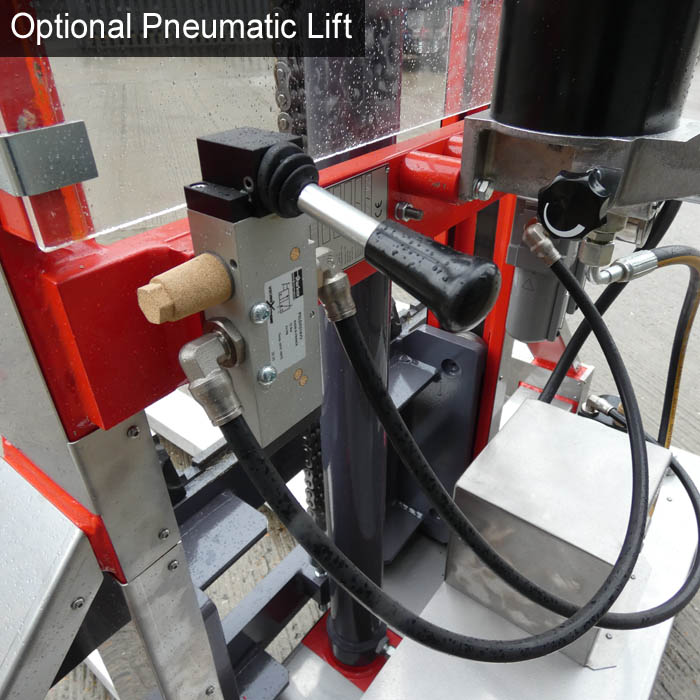

- Optional Pneumatic lift
| Model | F 10RL20/ATEX | F 10RL30/ATEX |
| Capacity | 1000kg | 1000kg |
| Load centre | 500mm from fork end | 500mm from fork end |

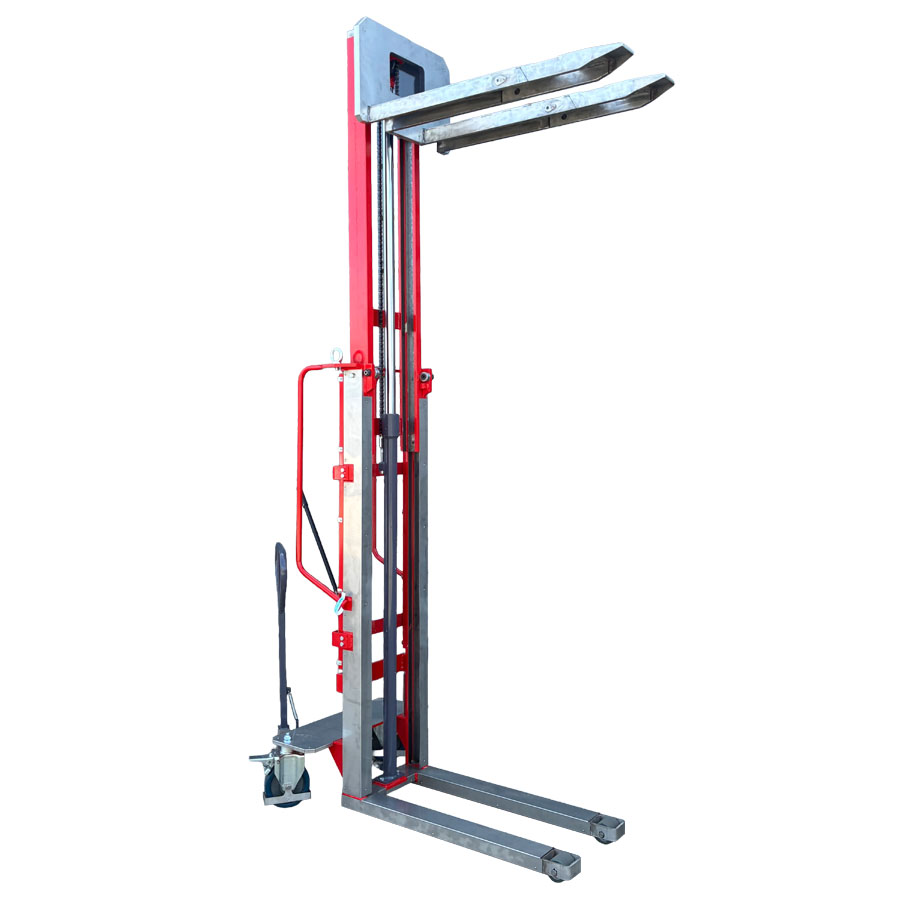

| Lift height | 90 – 2000 mm | 90 mm – 3000 mm |
| Height | 1435 mm | 1935 mm |
| Width | 775 mm | 802 mm |
| Length | 1805 mm | 1805 mm |
| Lift fork width | 545 mm | 545 mm |
| Lift fork length | 1150 mm | 750 / 1150 mm |
| Swivel wheels | ø 200×50 mm PU EC | ø 200×50 mm PU EC |
| Fixed wheels | ø 82×70 mm PU EC | ø 82×70 mm PU EC |
| Manual hydraulic aggregate | RHA 16-3.5 | RHA 16-5 |
| Lift height per full pump | 15 mm | 15 mm |
| Max. lowering speed by nominal capacity 1000 kg | 0.5 m/s (ensuring the safety valve) | 0.5 m/s (ensuring the safety valve) |
| Max. lever force by max. nominal capacity 1000 kg | max. 400 N | max. 400 N |
| Weight | 405 kg | 460 kg |
| Max. Lift Height | 2000mm, 3000mm |
|---|
