200kg Mortuary Tray Lifter


Out of stock

SKU: BSL20D-BTT Category:

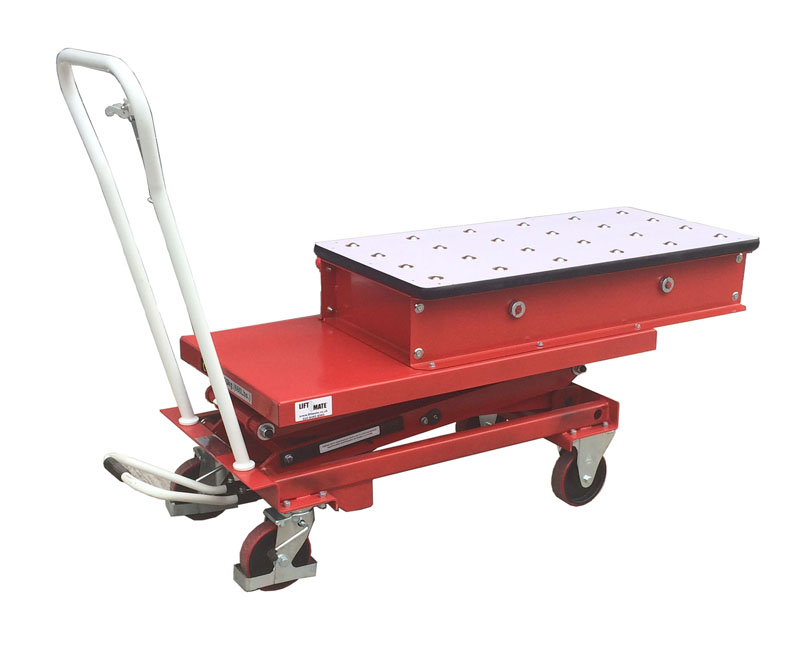

200kg Mortuary Tray Lifter with Retractable Ball Top
(tray not included)


The LiftMate mobile scissor lift table and lifting trolley range has been designed, developed and built to give long service with minimum maintenance required.

- This mortuary lifter is based on our 300kg double scissor table.
- The capacity is downrated to 200kg and the table is fitted with an offset retractable ball top.
- The load centre of gravity must be kept between back of the fixed castors (towards the handle).
- The table is designed for this to be approximately half way down the tray.
- The aluminium, plastic or stainless steel tray (not included) is easy to lift and transfer away from the table in any direction.
- The ball top is retractable so can be lowered when the tray is being moved horizontally.

  • Manual hydraulic operation (foot pump to lift / hand lever to lower)
  • Hand operated, fully controllable lowering speed
  • Can be used safely at any height
  • Fitted with two total stop brakes as standard to prevent the table from moving when loading and unloading
  • Fitted with an overload valve
  • Hard wearing and non-marking polyurethane tyres prevent damage to floors
  • Swivel wheels fitted with thread guards
  • Epoxy powder coated finish for durability
  • Issued with a test certificate in conformance with EU standards EN 1570 on request
  • Electric lift version available - please contact us for more information.
Technical Specifications:
Capacity: 200 kg
Closed Height: 615 mm
Raised Height: 1800 mm
Handle Height: 1130 mm
Overall Length: 1500 mm
Wheels Diameter: ø 150 mm
Approx. Weight: 150kg
