12t Machinery Toe Jack – TBL120


SKU: TBL120 Category:

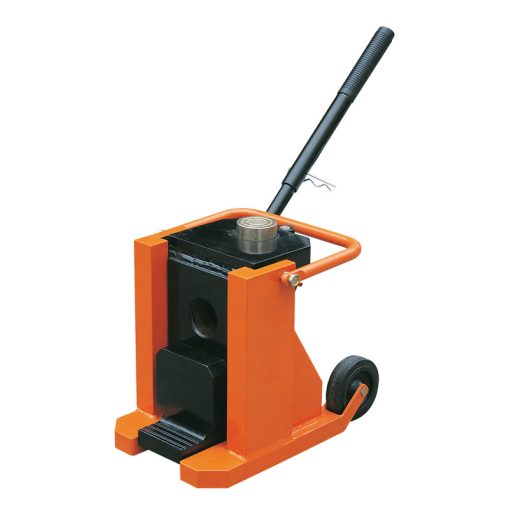

Machinery Toe Jack

This hydraulic machinery toe jack has a fixed toe and is suitable for general lifting purposes. The toe jack has two lifting positions (toe & top) with capacities of 12 & 15t respectively.

  • Designed for raising loads and placing shifting-skates underneath them
  • Also used for general repairs, maintenance and for installation of heavy items
  • Dual lifting capability: loads can be lifted using the toe or the head of the jack
  • 2 toe positions and wheels for easy manoeuvring
  • Adjustable lowering speed
  • Removable pump handle
  • Overload protection
Technical Specifications:
Capacity: 12000kg
Lifting Capacity on Toe: 12000kg
Lifting Capacity on Head: 15000kg
Lift Height on Toe: 40 - 180 mm (two stage)
Lift Height on Head: 325 - 545 mm
Lifting Stroke: 140 mm
Approx. Weight: 68kg
