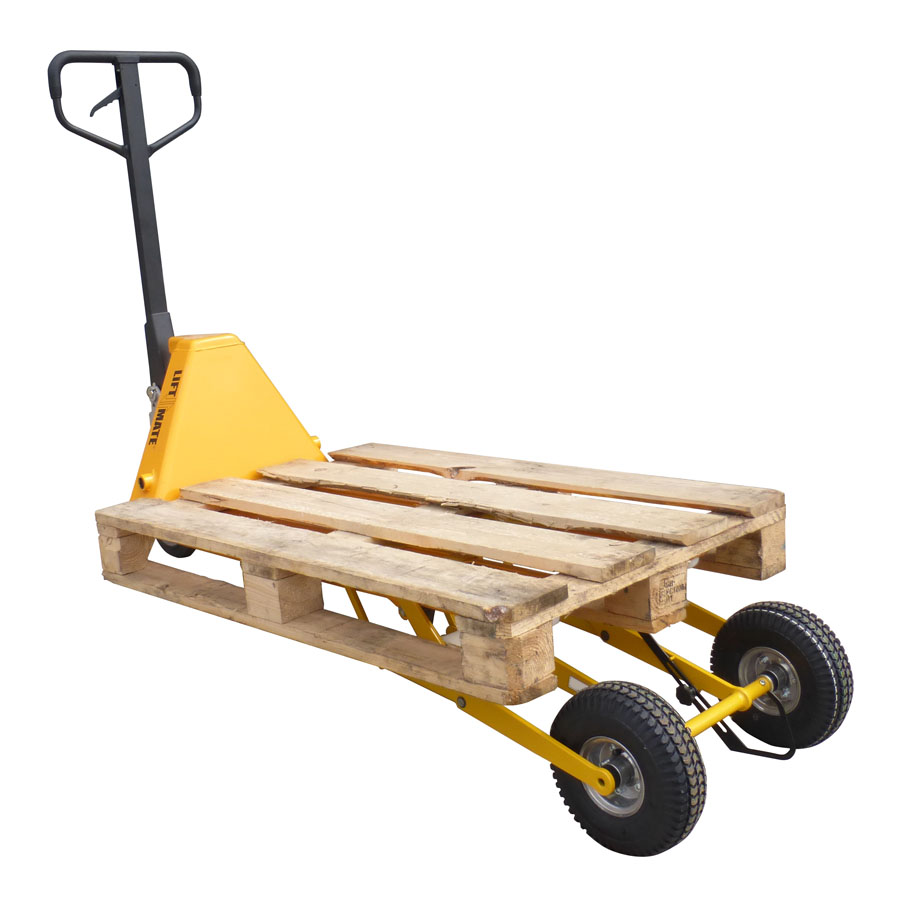

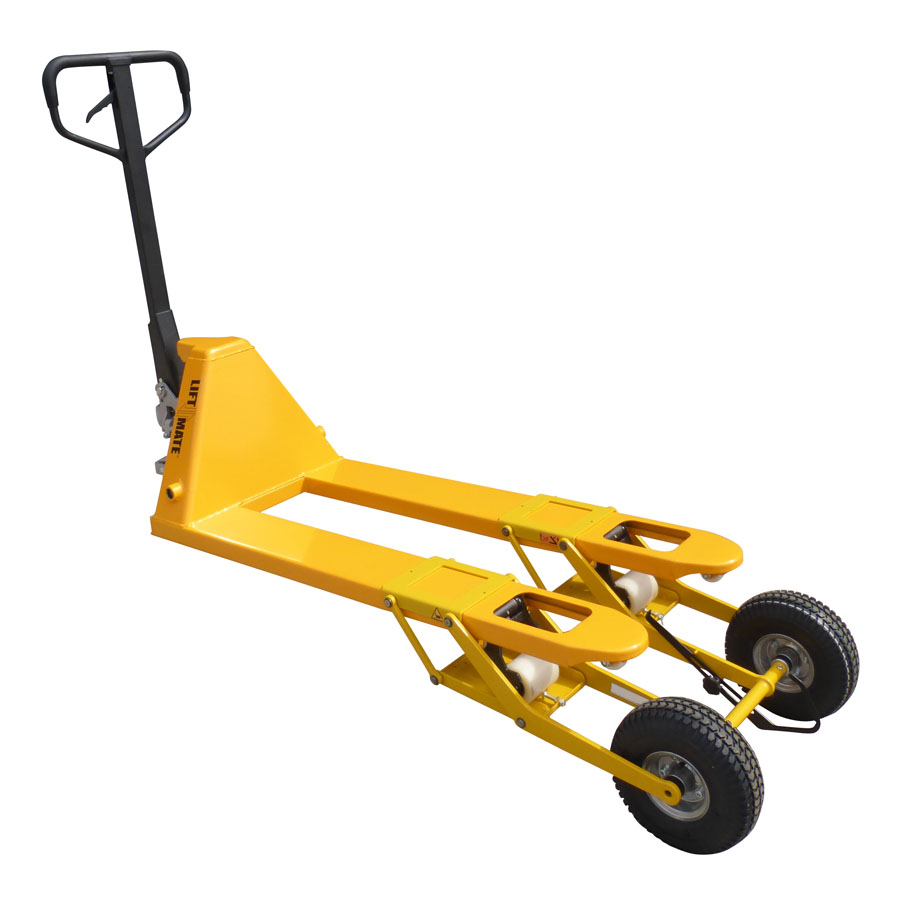

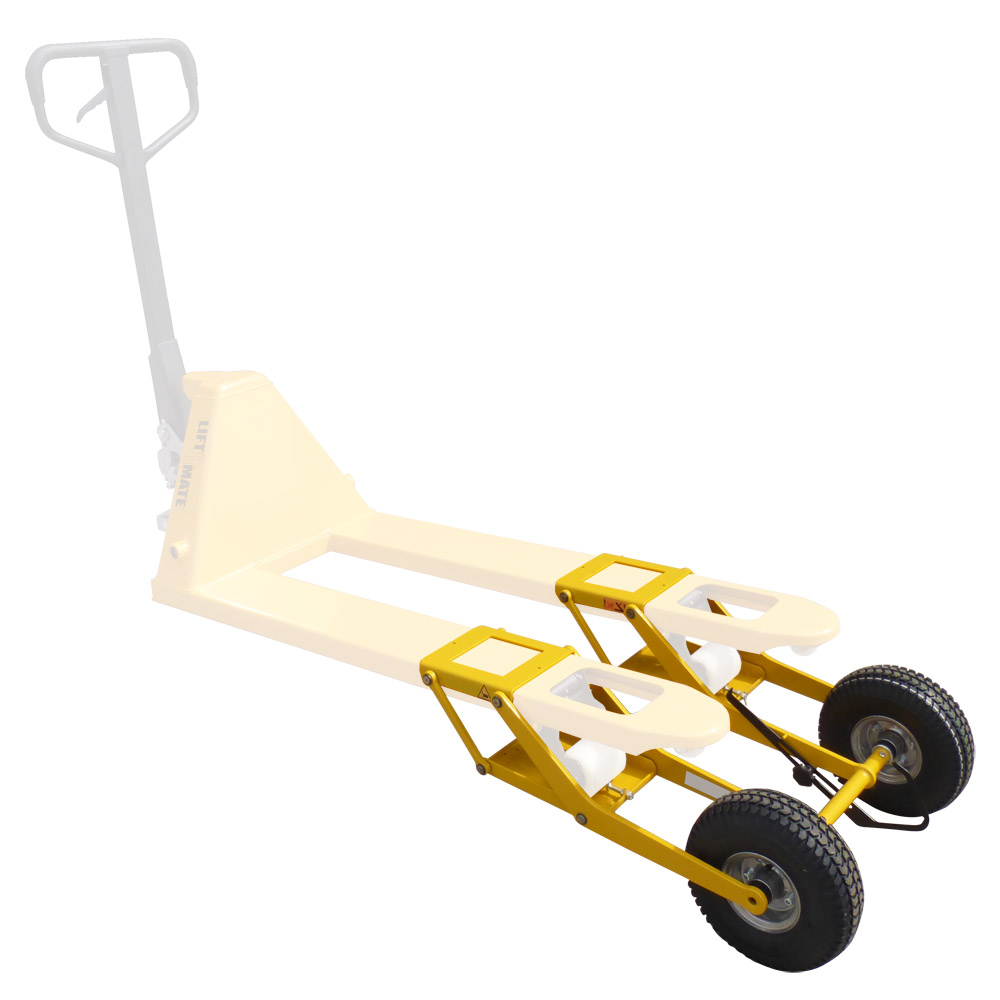

Terrain Load Wheels Attachment for Hand Pallet Trucks

• The Terrain Load Wheels accessory is a removable accessory that can be attached to standard pallet trucks (of appropriate dimensions)
• This accessory makes it easier to manually move loads using a pallet truck on unpaved surfaces such as gravel, crushed stone or grass
• The Terrain Load Wheels accessory is also very effective when moving loads in wintery conditions
• The Terrain Load Wheels accessory is not suitable for use on lateral inclines due to risk of tipping
• The centre of gravity of the load being conveyed must be kept as low as possible and always be central
• Suitable for pallet trucks with the following dimensions:
  • Fork Length: 1150 mm
  • Load Capacity of at least 2000 kg
  • Fork separation of at least 220 mm
  • Wdth over Forks of 520 – 540 mm

WARNING
The Terrain Load Wheels accessory must only be held by the wheel axle or from the front using the upper open handles.
Never hold from the side! Never hold moving parts! There is a risk of crushing and cutting.

ATTACHING THE TERRAIN LOAD WHEELS ACCESSORY / INSERTING PALLET TRUCK.

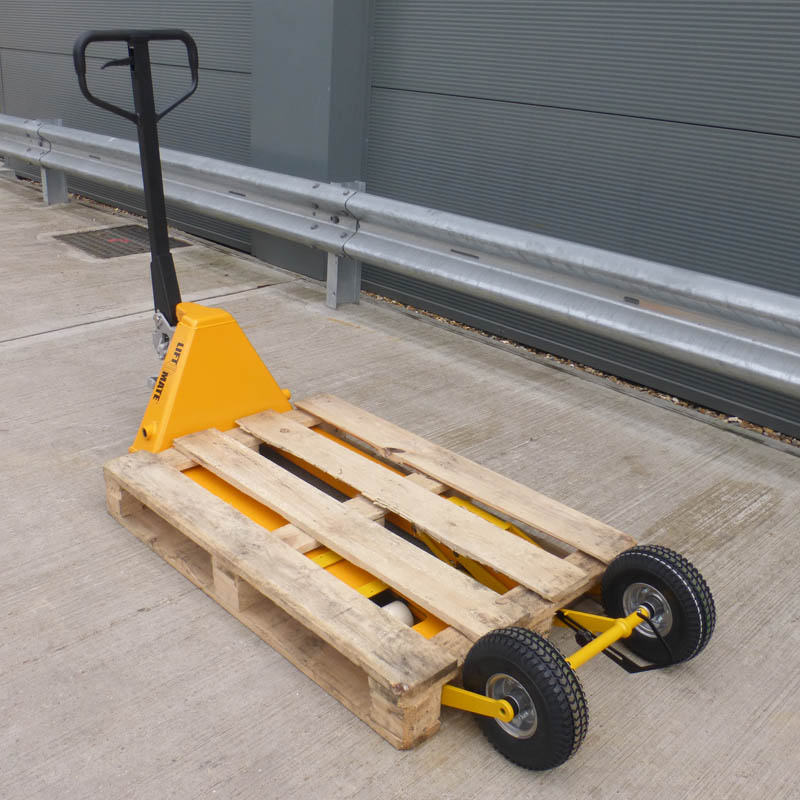

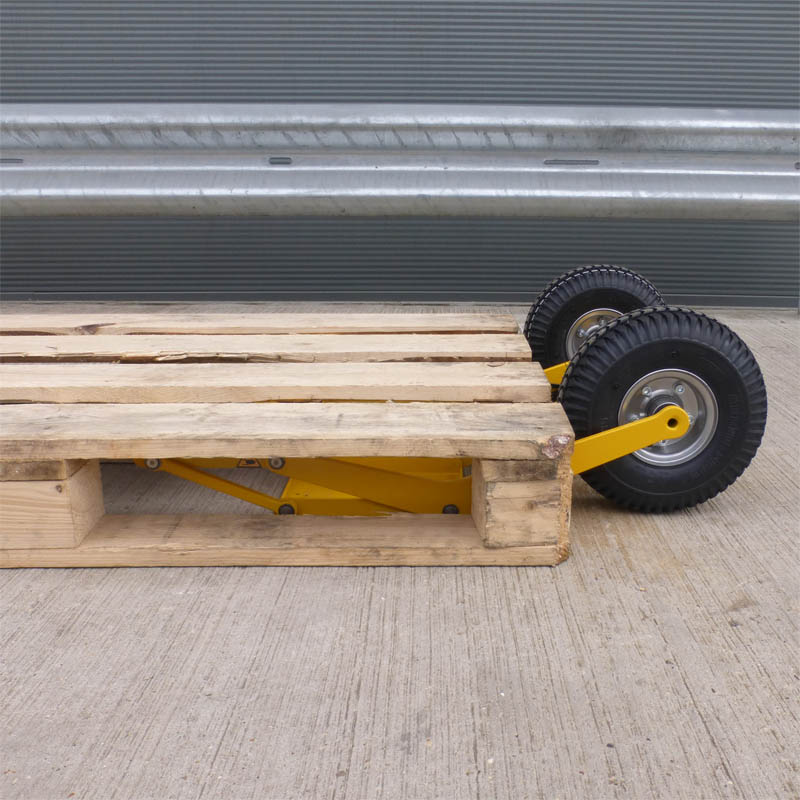

The Terrain Load Wheels should be held using the wheel axle and pushed forward using the frame base plates into the open side of a crate or euro-pallet until the wheels touch it. The locking lever is then fixed so that the accessory cannot be pushed out when the truck is inserted.

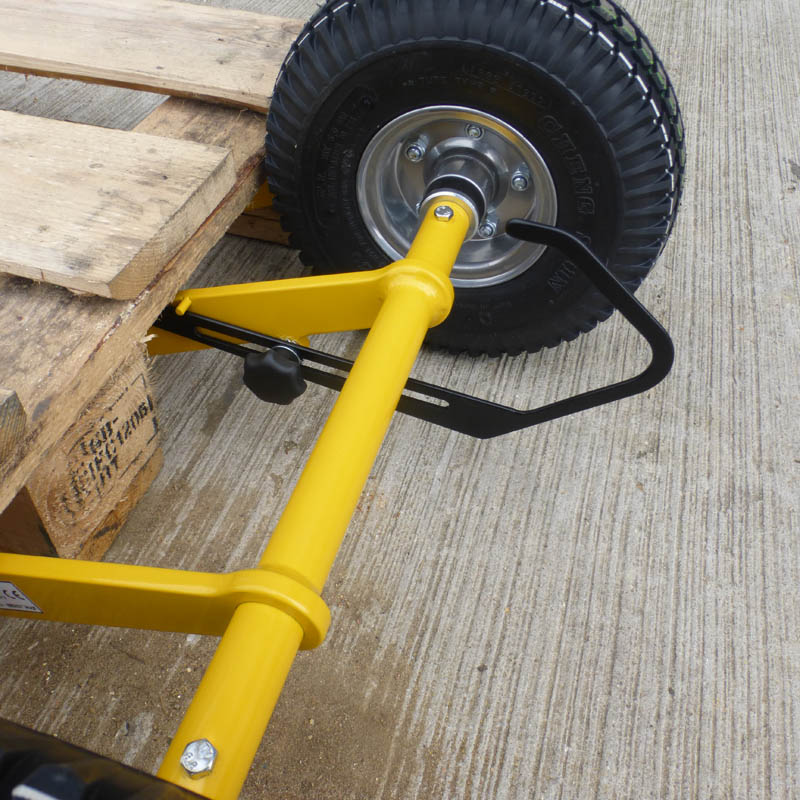

The locking screw is loosened and the locking lever positioned so that it locks into place with the tip beneath the load being transported. The locking screw is tightened by hand in this position. If a second person is available to attach the accessory, then the locking lever is not required.

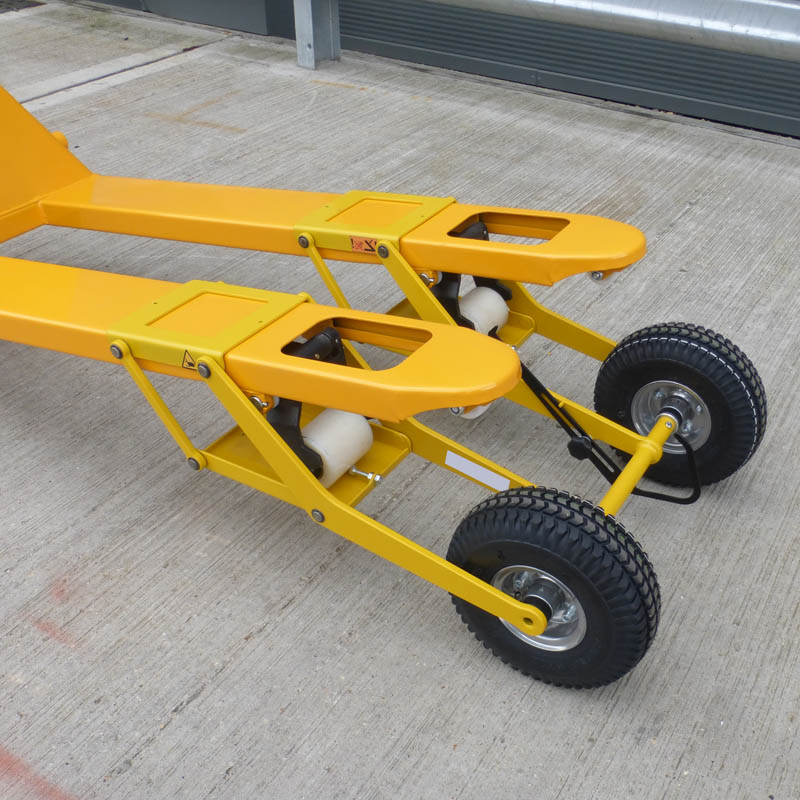

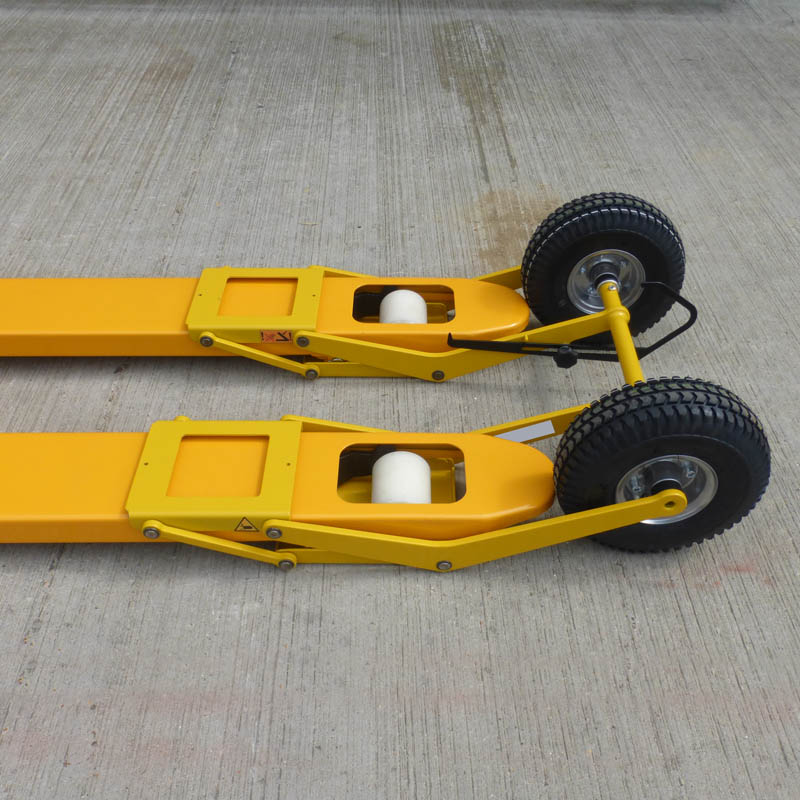

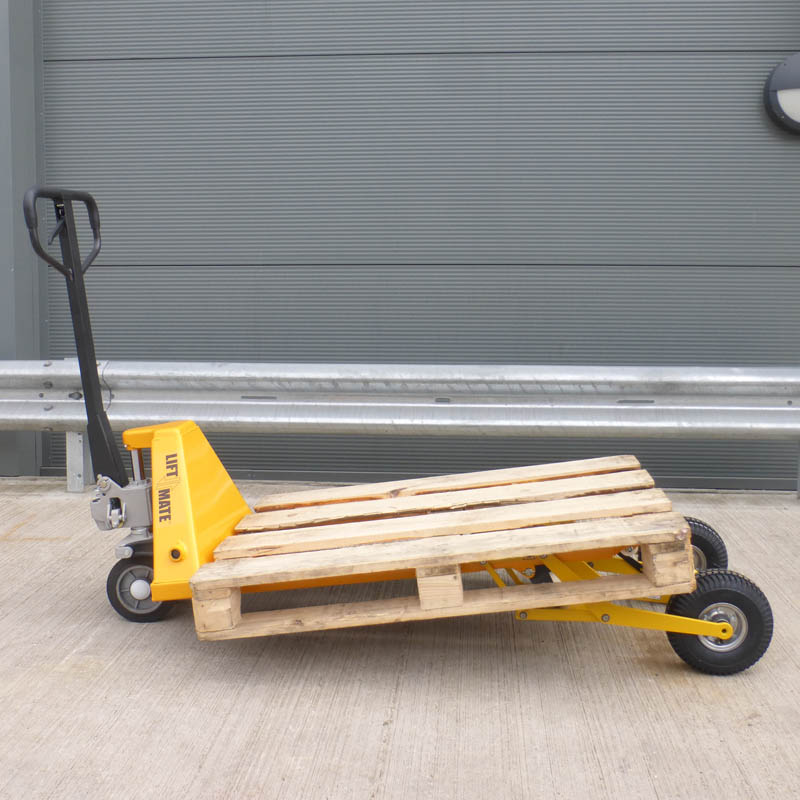

The forks on the pallet truck are inserted into the opposite side beneath the box or euro-pallet until the rear of the forks are touching the box/pallet. Ensure that both wheels on the pallet truck are resting on the frame base plates of the accessory before you begin lifting the truck. The load must only be lifted as high as is necessary for safe transport.
